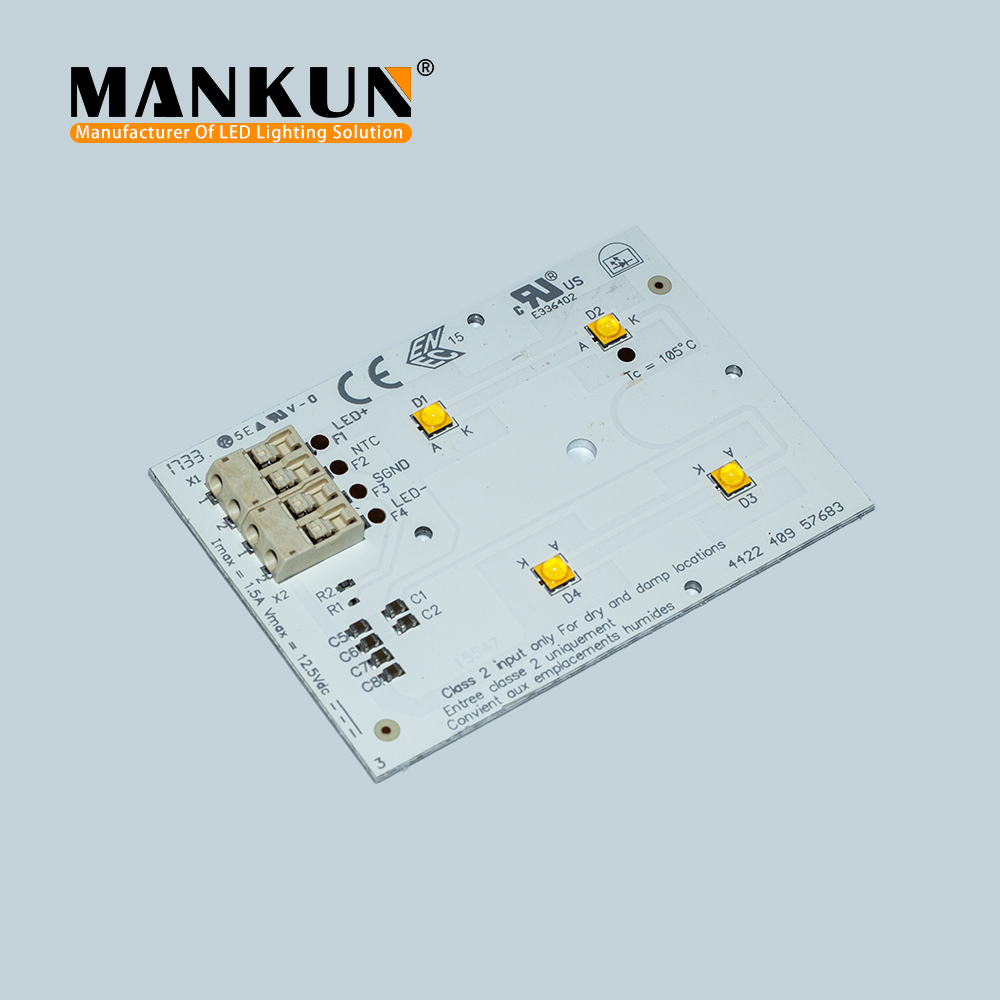

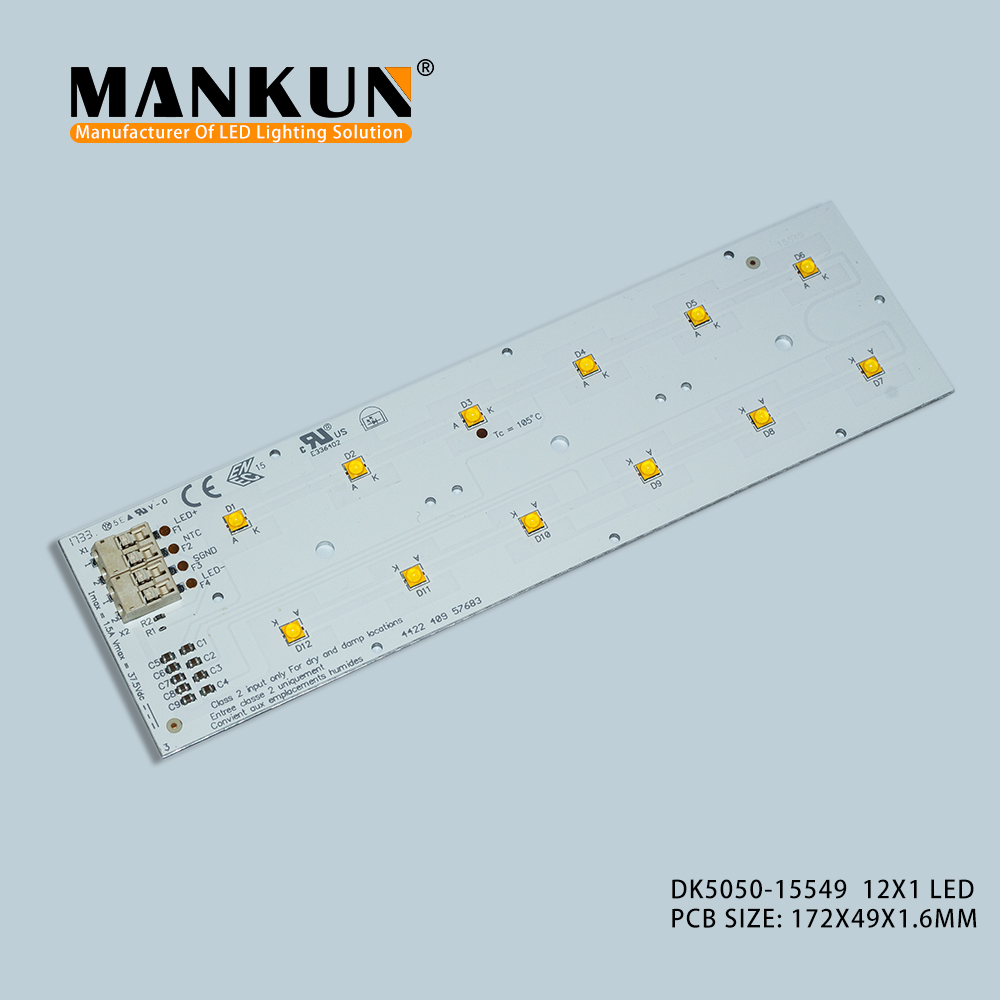

High Bright SMD3535 LED Board 4000K Color Temperature For LED Street Light

在线咨询

规格书 CAD产品外形测试报告

产品介绍

Approval marks:

ESD

cRUus

UKCA

ENEC

RoHs

Technical data
Beam characteristic	120°
Ambient temperature range	-40 ... +80 °C
tp rated	75 °C
tc	105 °C
Irated	650 mA
Imax	1,200 mA
Max. permissible LF current ripple	1,320 mA
Max. permissible peak current	2,000 mA / max. 10 ms
Max. working voltage for insulation	370 V

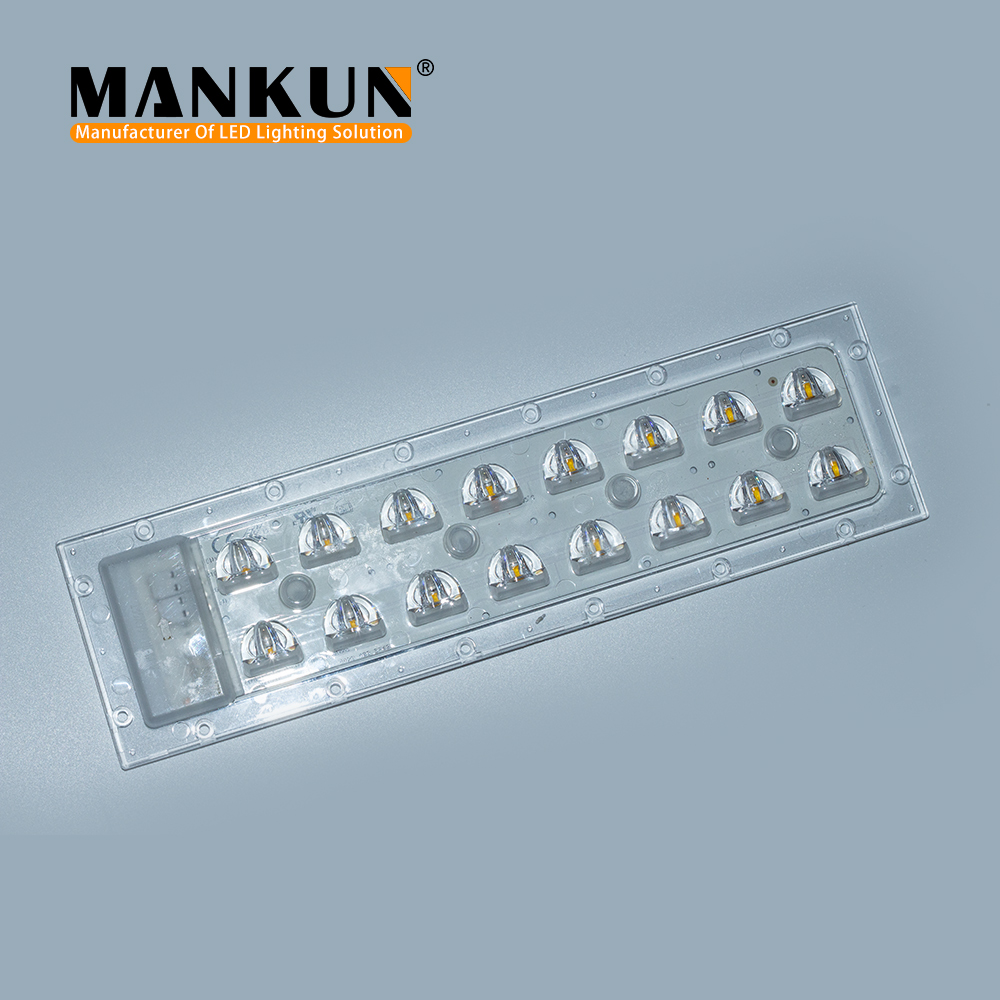

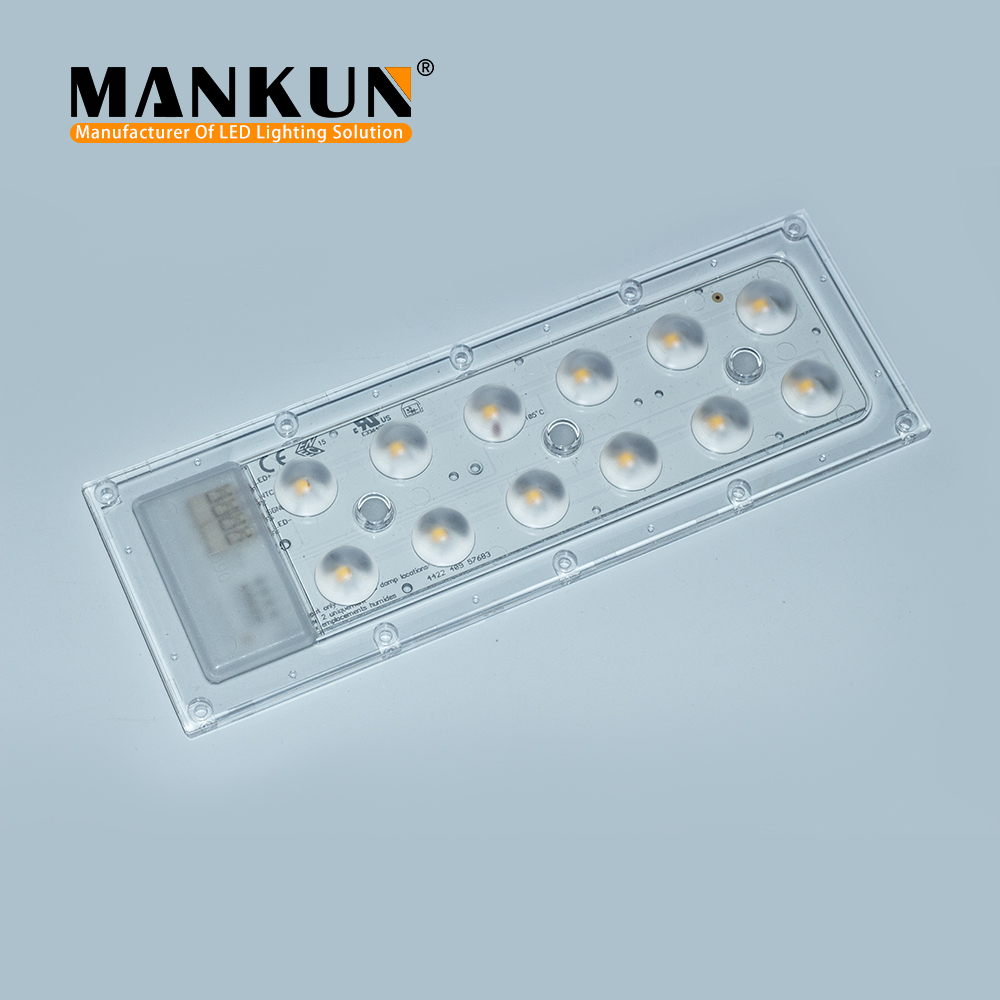

Max. working voltage for insulation with lens	670 V
Insulation test voltage	1.74 kV
CTI of the printed circuit board	> 600
ESD classification	Severity level 4
Risk group (IEC 62471)	RG2 (Ethr = 684 lx, RG1 at d ≥ 48 cm)
Classification acc. to IEC 62031	Built-in
Type of protection	IP00
Lumen maintenance L70B50	100,000 h
Guarantee	5 Year(s)

Specific technical dataFilter
Photometric code	Useful luminous flux at tp = 25 °C②	Expected luminous flux at tp rated ③	Typ. forward current	Min. forward voltage at tp = 75 °C	Max. forward voltage at tp = 25 °C	Typ. power consumption at tp = 75 °C ④	Efficacy of the module at tp = 25 °C	Expected efficacy of the module at tp rated	Colour rendering index CRI

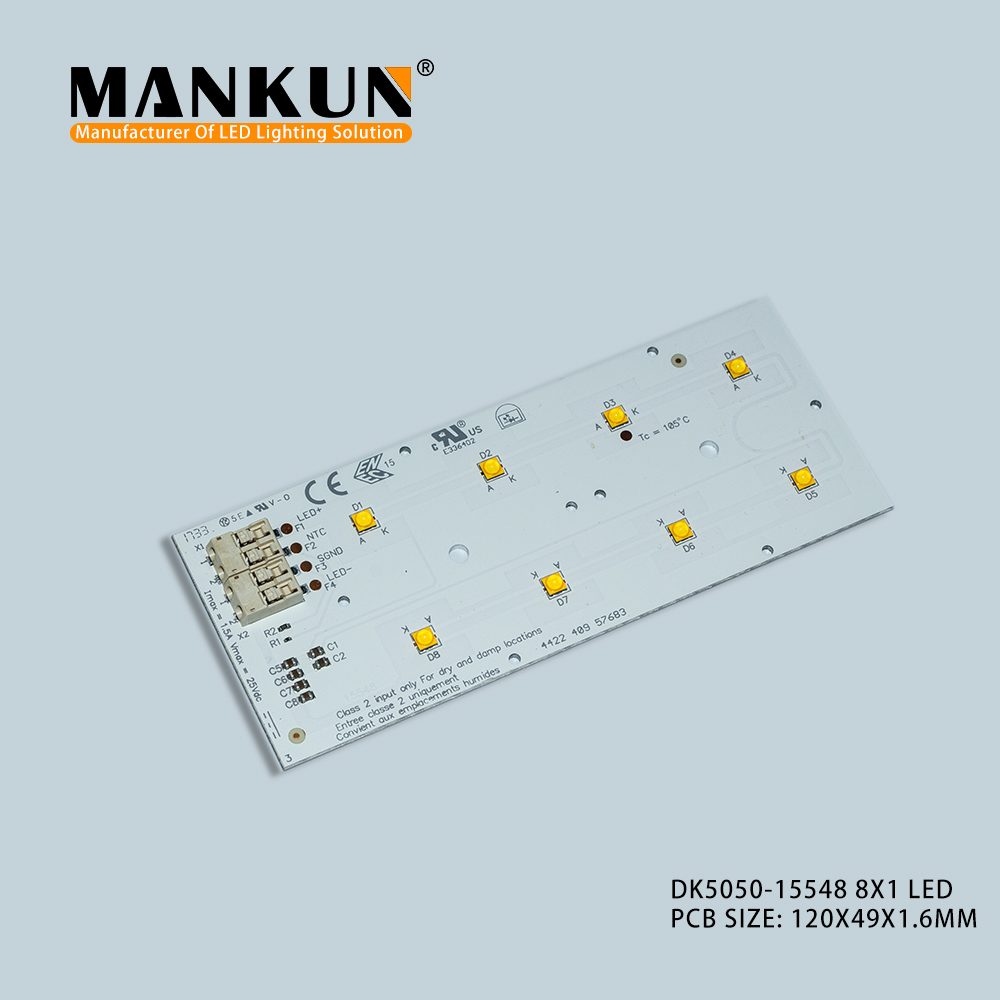

▼AL15548 - 121*49mm - 2x4 2000lm – Operating mode NM
827/579	2,144 lm	2,024 lm	650 mA	21.5 V	24.0 V	14.97 W	143 lm/W	139 lm/W	> 80
830/579	2,354 lm	2,224 lm	650 mA	21.5 V	24.0 V	14.97 W	157 lm/W	153 lm/W	> 80
840/579	2,435 lm	2,295 lm	650 mA	21.5 V	24.0 V	14.97 W	163 lm/W	158 lm/W	> 80
850/579	2,460 lm	2,320 lm	650 mA	21.5 V	24.0 V	14.97 W	164 lm/W	159 lm/W	> 80
722/579	1,802 lm	1,742 lm	550 mA	21.2 V	23.9 V	12.60 W	143 lm/W	142 lm/W	> 70
730/579	2,124 lm	2,054 lm	550 mA	21.2 V	23.9 V	12.57 W	169 lm/W	167 lm/W	> 70
740/579	2,270 lm	2,190 lm	550 mA	21.2 V	23.9 V	12.57 W	181 lm/W	180 lm/W	> 70
765/579	2,270 lm	2,190 lm	550 mA	21.2 V	23.9 V	12.60 W	181 lm/W	179 lm/W	> 70

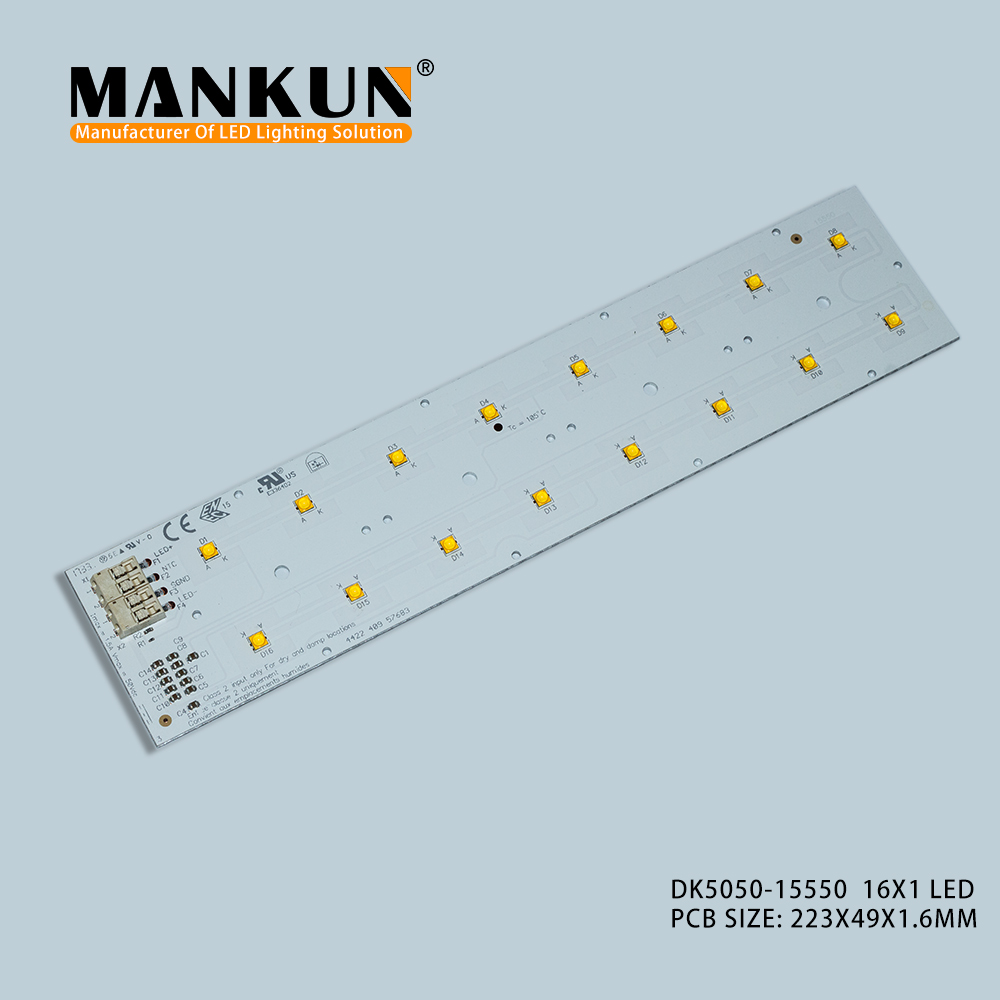

▼AL15550 - 223*49mm - 2x8 4000lm – Operating mode NM
827/579	4,288 lm	4,038 lm	650 mA	43.1 V	48.0 V	29.93 W	143 lm/W	139 lm/W	> 80
830/579	4,708 lm	4,438 lm	650 mA	43.1 V	48.0 V	29.93 W	157 lm/W	153 lm/W	> 80
840/579	4,871 lm	4,591 lm	650 mA	43.1 V	48.0 V	29.93 W	163 lm/W	158 lm/W	> 80
850/579	4,919 lm	4,639 lm	650 mA	43.1 V	48.0 V	29.93 W	164 lm/W	159 lm/W	> 80
722/579	3,605 lm	3,465 lm	550 mA	42.7 V	47.6 V	25.10 W	143 lm/W	141 lm/W	> 70
730/579	4,248 lm	4,088 lm	550 mA	42.7 V	47.6 V	25.13 W	169 lm/W	167 lm/W	> 70
740/579	4,540 lm	4,379 lm	550 mA	42.7 V	47.6 V	25.13 W	181 lm/W	179 lm/W	> 70
757/579	4,540 lm	4,379 lm	550 mA	42.7 V	47.6 V	25.13 W	181 lm/W	179 lm/W	> 70
765/579	4,447 lm	4,250 lm	550 mA	42.7 V	47.6 V	25.13 W	177 lm/W	174 lm/W	> 70
①HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output.
②Tolerance of useful light flux - 0 % / + 15 %. Measurement uncertainty ± 10 %.
③Tolerance of expected light flux - 0 % / + 15 %. Measurement uncertainty ± 10 %. Based on calculation.
④Tolerance of power consumption Pon ± 10 %. Measurement uncertainty ± 5 %.
