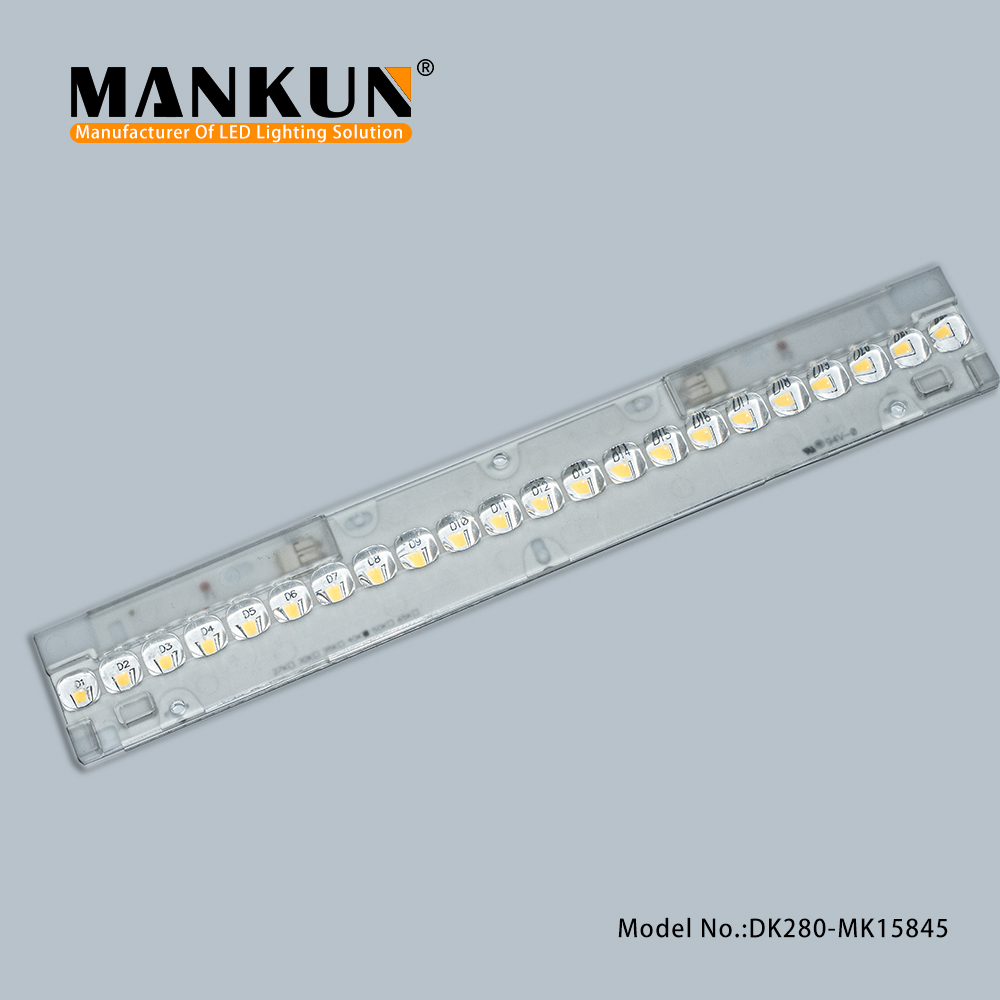

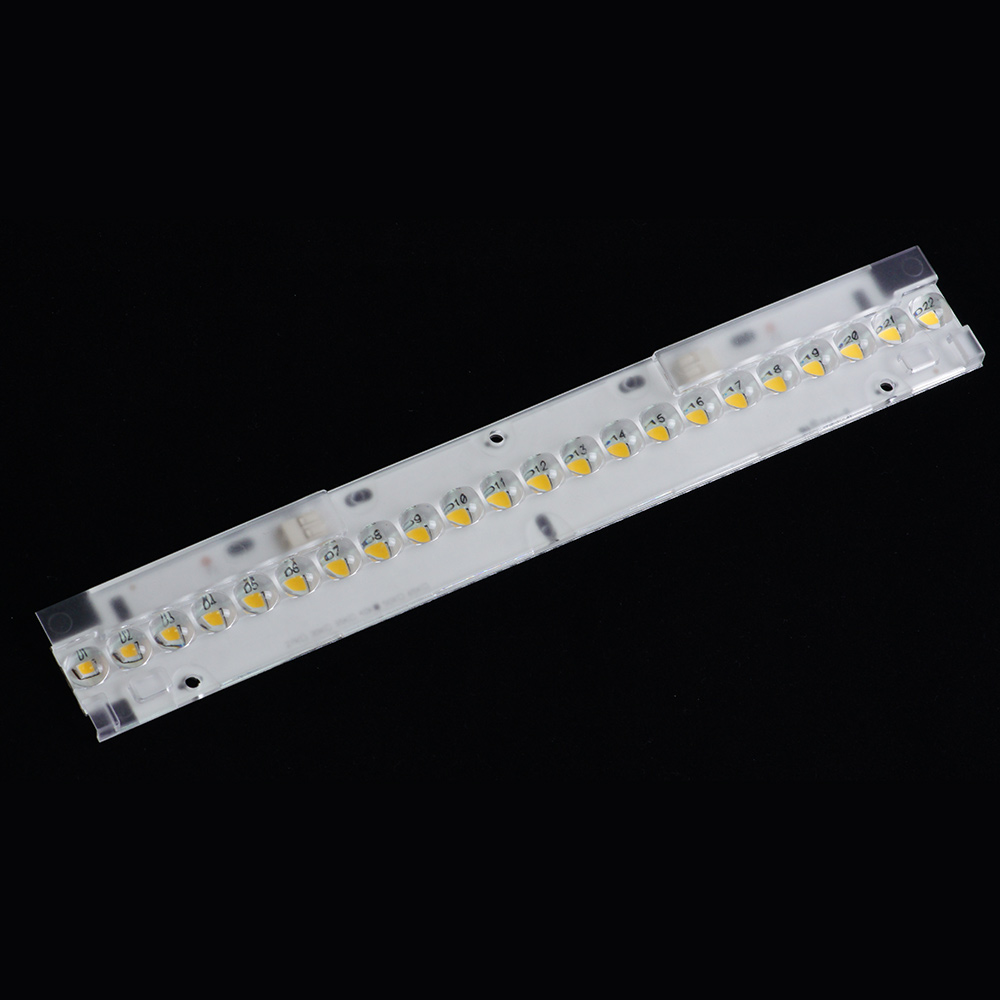

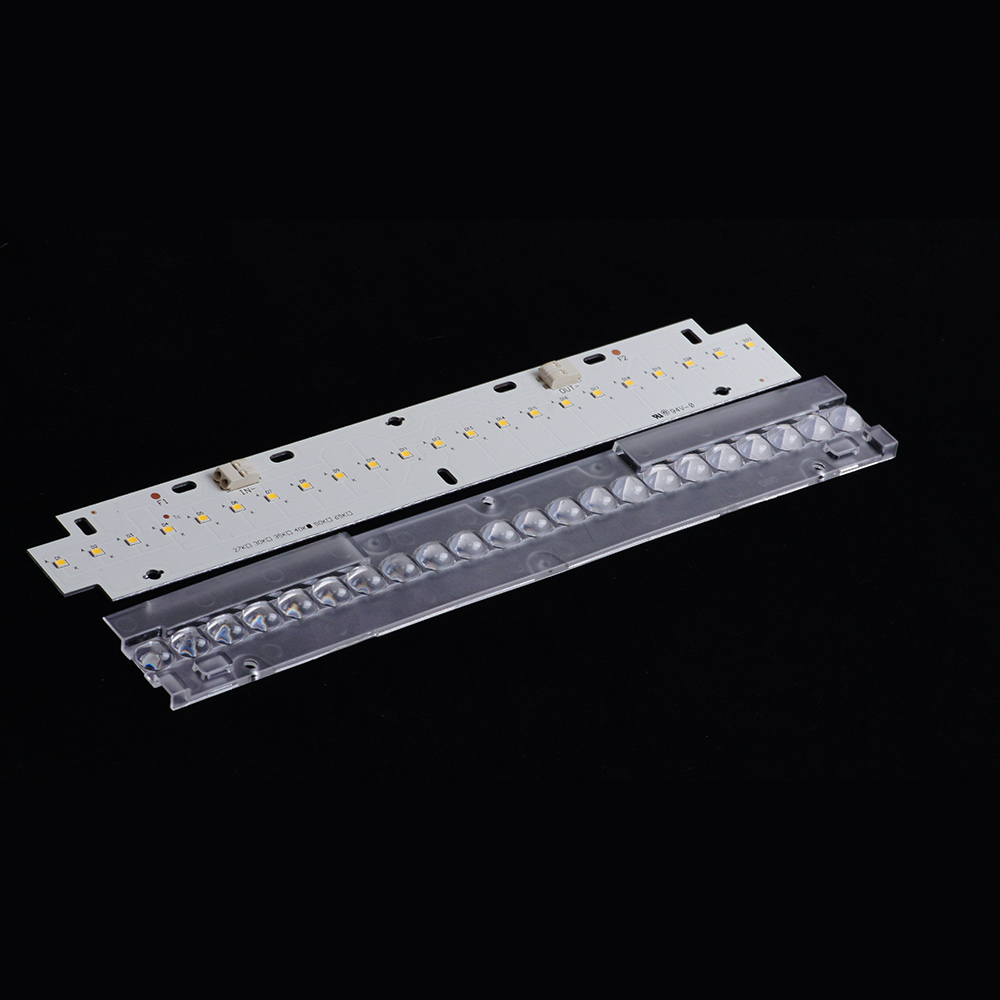

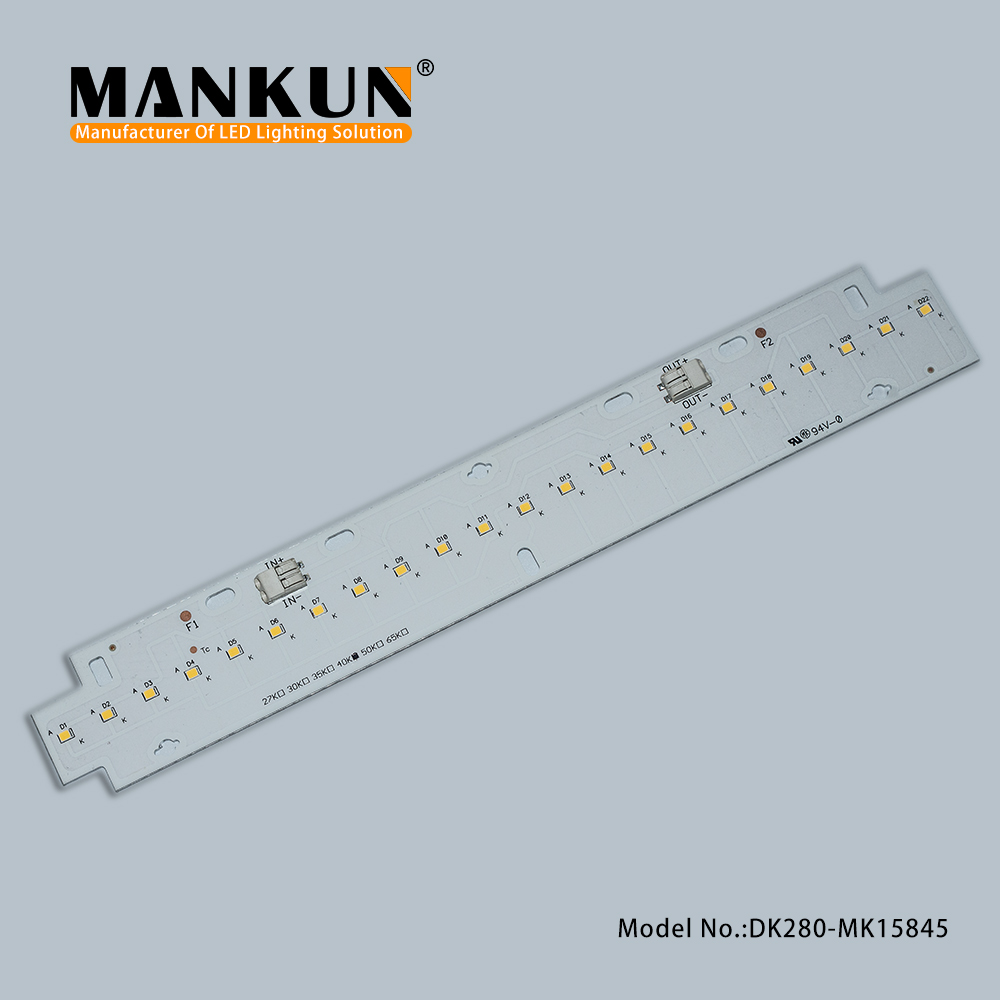

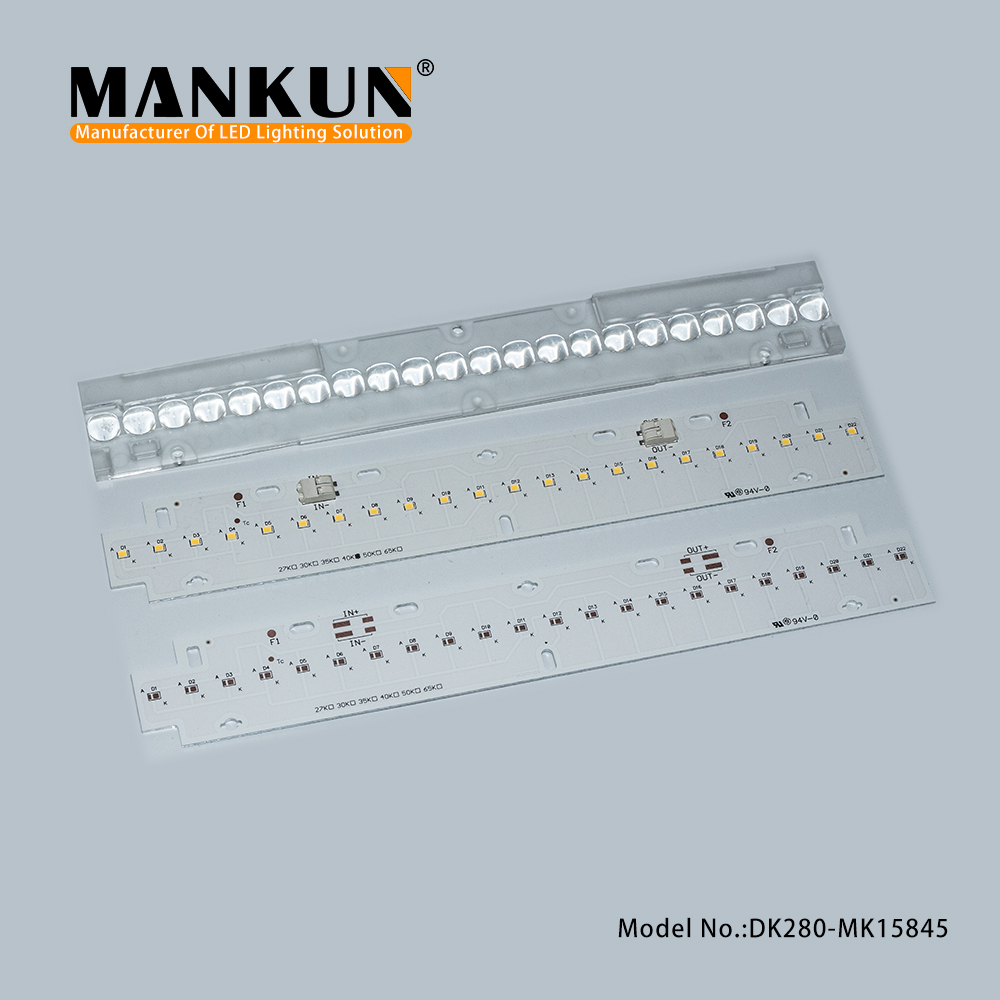

40mm Width Ceiling Light LED Module Smd 22LEDs 10W 25W Power 120 Degree Angle 15845

40mm Width Ceiling Light LED Module 10W 15W 20W Power 120 Degree Angle

40mm Width 1F Zhaga Smd 2835 22LED Module For Ceiling Light Led Module

Product description

• Ideal for linear and panel lights

• 2 terminals for serial wiring

• Push terminals for quick and simple wiring of LED module to LED module

• Reduced mounting and wiring effort

• Broad portfolio from extruded lenses and covers available

• Long lifetime up to 50,000 hours

• 5 years guarantee

Optical properties

• Colour temperatures 3,000 and 4,000 K

• Useful luminous flux 8,109 lm at Irated and tp = 25 °C

• Efficacy of the LED module 189 lm/W at Irated and tp = 25 °C

• High colour rendering index CRI > 80

• High colour consistency (MacAdam 5)

• Small luminous flux tolerances

Mechanical properties

• Module dimension 40 x 280 mm and 40 x 560 mm (ZHAGA compliant)

• Simple installation via clips or screws

System solution

• Combine Mingwei`s LED modules and dimmable drivers to achieve an outstanding system efficacy

Approval marks:

Specific technical dataFilter
