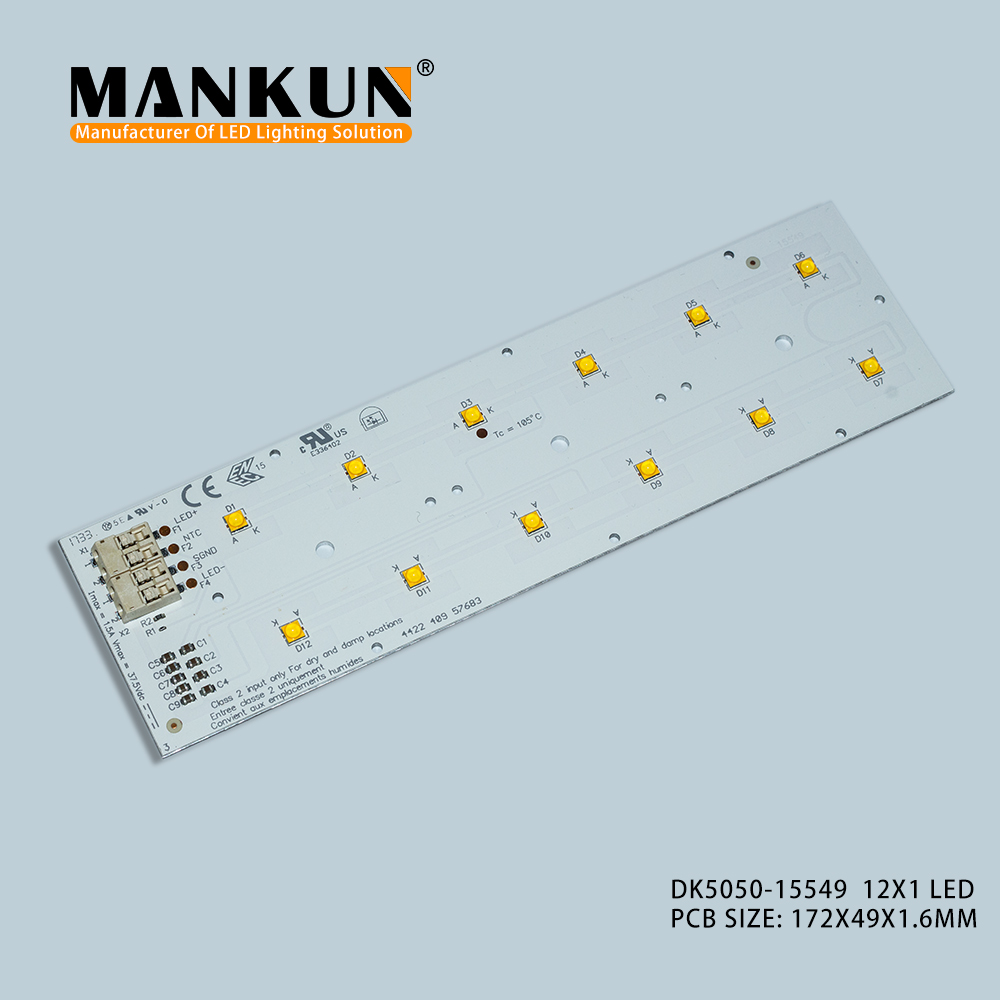

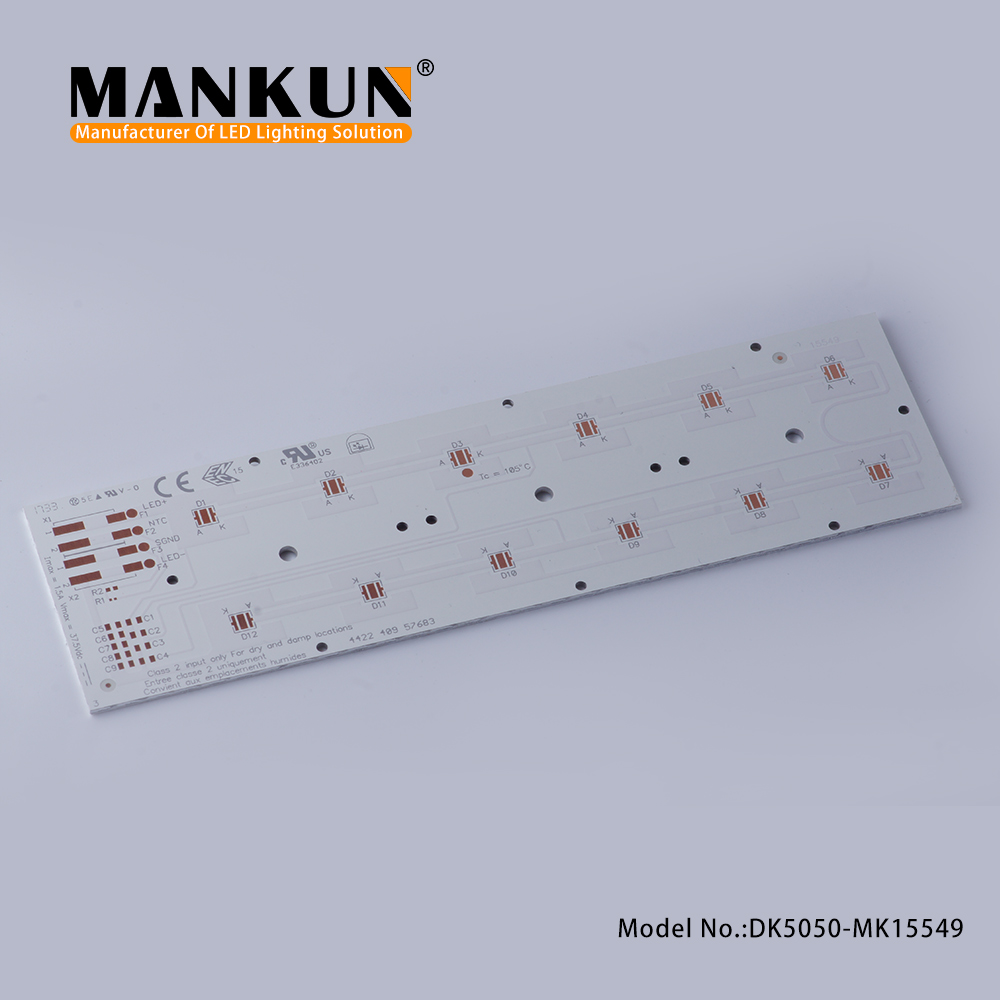

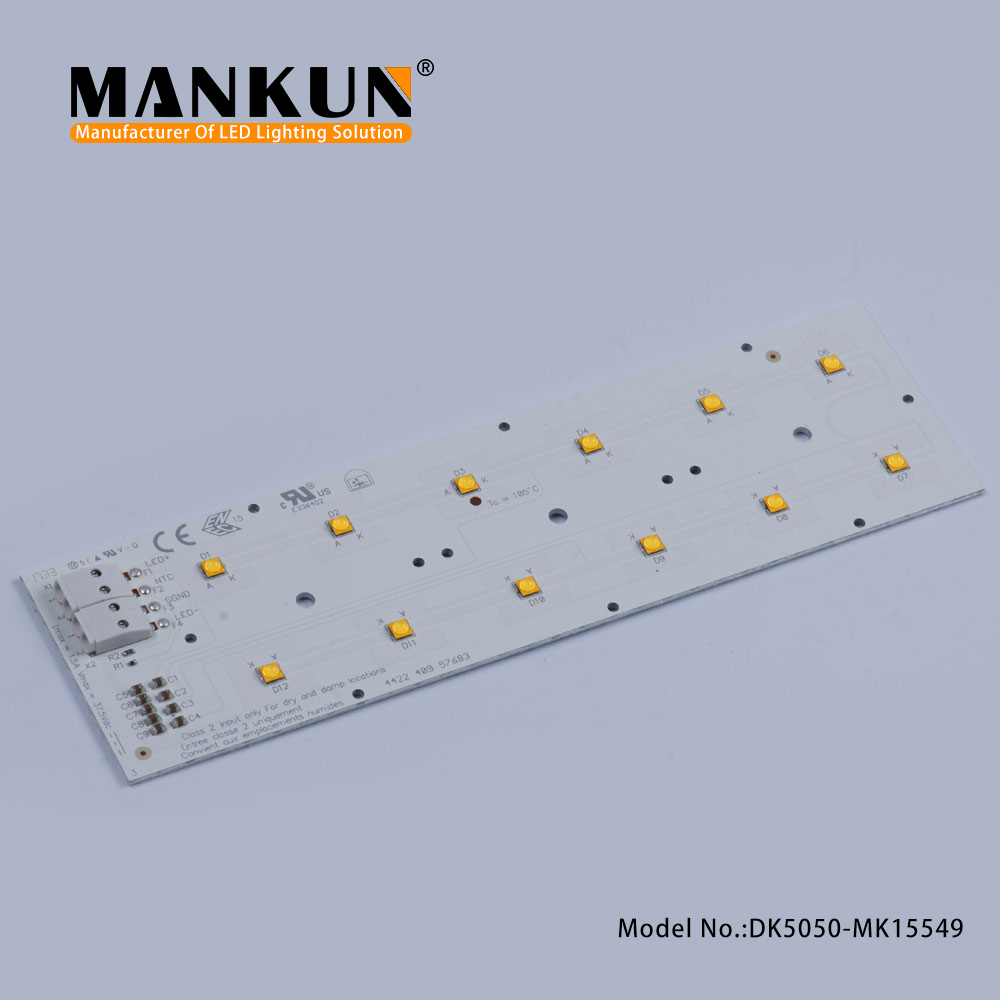

Outdoor Street Light 172x49.5mm PCB LED Module 12LED SMD 3535 Chip 15549

在线咨询

产品介绍

Product description

High efficiency outdoor modules
Colour temperatures 3,000 K, 4,000 K, 5,000 K, 5,700 K and 6,500 K
Useful luminous flux 4,550 lm at Irated and tp = 25 °C
Efficacy of the LED module 160 lm/W at Irated and tp = 25 °C
Two colour rendering index to fit the application: CRI > 70 high efficency, CRI > 80 for high colour rendering
Suitable for harsh and humid outdoor conditions
Huge performance temperature range from -40 ... +105 °C
Surge tested (+/- to earth) 6 kV with MW LED driver
Integrated NTC for overtemperature protection
Zhaga Book 15 compliant

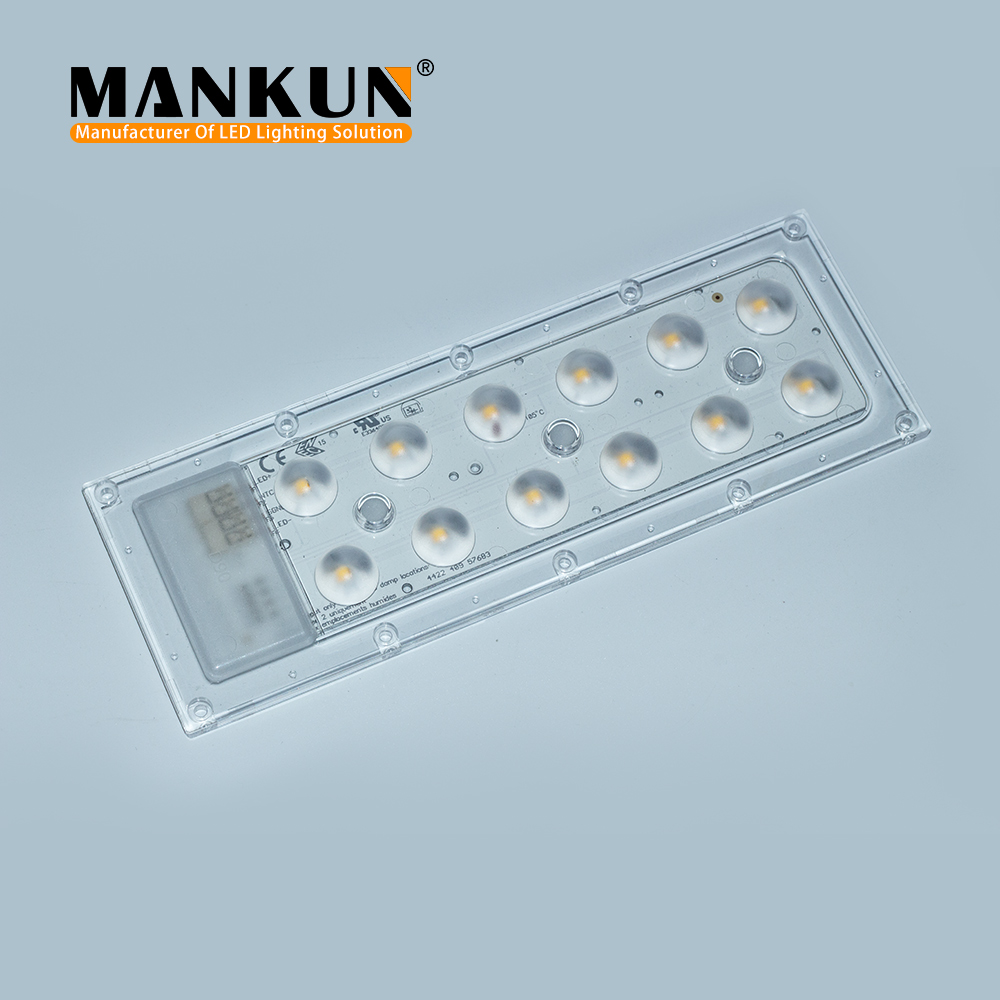

For use with standard 2x2 lenses (e.g. LEDiL Strada 2x2)
Push-in terminals for simple and quick wiring
Module dimension 49.5 x 223 mm
Installation of the module together with lens in the luminaire by means of an M3 screw
Long lifetime up to 80,000 hours

Technical data
Beam characteristic	120°
Ambient temperature range	-40 ... +80 °C
tp rated	75 °C
tc	105 °C
Irated	650 mA
Imax	1,200 mA
Max. permissible LF current ripple	1,320 mA
Max. permissible peak current	2,000 mA / max. 10 ms
Max. working voltage for insulation	370 V
Max. working voltage for insulation with lens	670 V
Insulation test voltage	1.74 kV
CTI of the printed circuit board	> 600
ESD classification	Severity level 4
Risk group (IEC 62471)	RG2 (Ethr = 684 lx, RG1 at d ≥ 48 cm)
Classification acc. to IEC 62031	Built-in
Type of protection	IP00
Lumen maintenance L70B50	80,000 h
Guarantee	3+5 Year(s)

Specific technical data

Model	CCT K	Current mA	Flux Tp 250C lm	Flux Tp 650C lm	Power Tp 650C W	Efficacy Tp 250C lm/W	Efficacy Tp 650C lm/W	Imax mA	Min. Voltage Tp 650C	Max. Voltage Tp 250C
MK15549 （B-S3)	3000	500	2322	2214	18.0	129	123	1500	31.2	33.6
		700	3122	2942	25.8	121	114
		1000	4196	3894	37.8	111	103
		1400	5475	4977	55.3	99	90
	4000	500	2502	2376	18.0	139	132
		700	3354	3174	25.8	130	123
		1000	4536	4196	37.8	120	111
		1400	5918	5365	55.3	107	97
	5000	500	2682	2556	18.0	149	142
		700	3612	3406	25.8	140	132
		1000	4839	4499	37.8	128	119
		1400	6305	5752	55.3	114	104
	6500	500	2682	2556	18.0	149	142
		700	3612	3406	25.8	140	132
		1000	4839	4499	37.8	128	119
		1400	6305	5752	55.3	114	104
The mentioned data can have a 10% tolerance.
