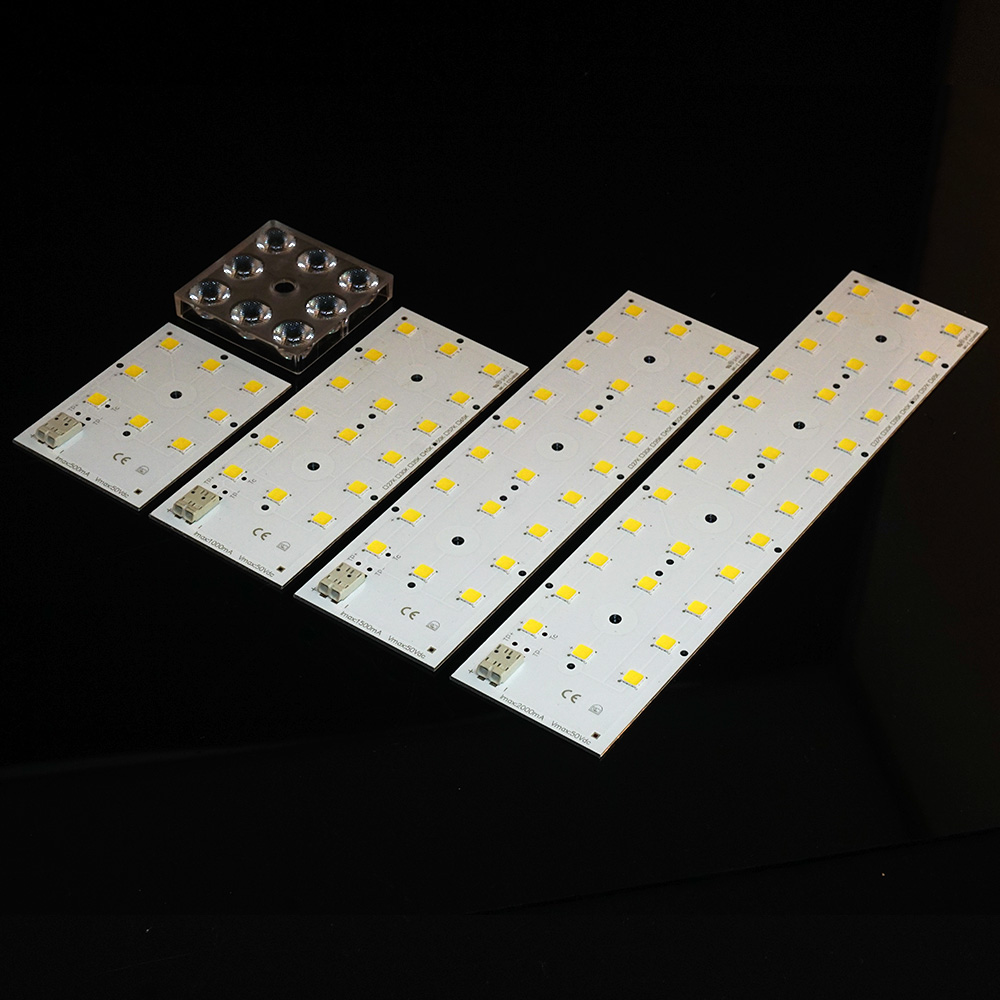

Aluminium Material Smd 5050 LED Module For Street Light Customized PCB Module 20048

Specification CAD Product Appearance Test Report

Product Introduction

Aluminium Material Smd 5050 Led Module For Street Light Customized PCB Module

Product description

High efficiency outdoor modules
Suitable for harsh and humid outdoor conditions
Huge performance temperature range from -40 ... +105 °C
Surge tested (+/- to earth) 6 kV with Tridonic LED driver
Integrated NTC for overtemperature protection
Zhaga Book 15 compliant
For use with standard 2x2 lenses (e.g. LEDiL Strada 2x2)
Push-in terminals for simple and quick wiring
Long lifetime up to 100,000 hours
8 years guarantee

Optical properties

Colour temperatures 2,200 K, 2,700 K, 3,000 K, 4,000 K, 5,000 K, 5,700 K and 6,500 K
Useful luminous flux 4,550 lm at Irated and tp = 25 °C
Efficacy of the LED module 181 lm/W at Irated and tp = 25 °C
Two colour rendering index to fit the application: CRI > 70 high efficency, CRI > 80 for high colour rendering
Small luminous flux tolerances

Technical Specifications

1, Product Name	8 in 1 led board 8LED customized PCB Plate Solar lamp
2, Model No	SUN-LD16-5050

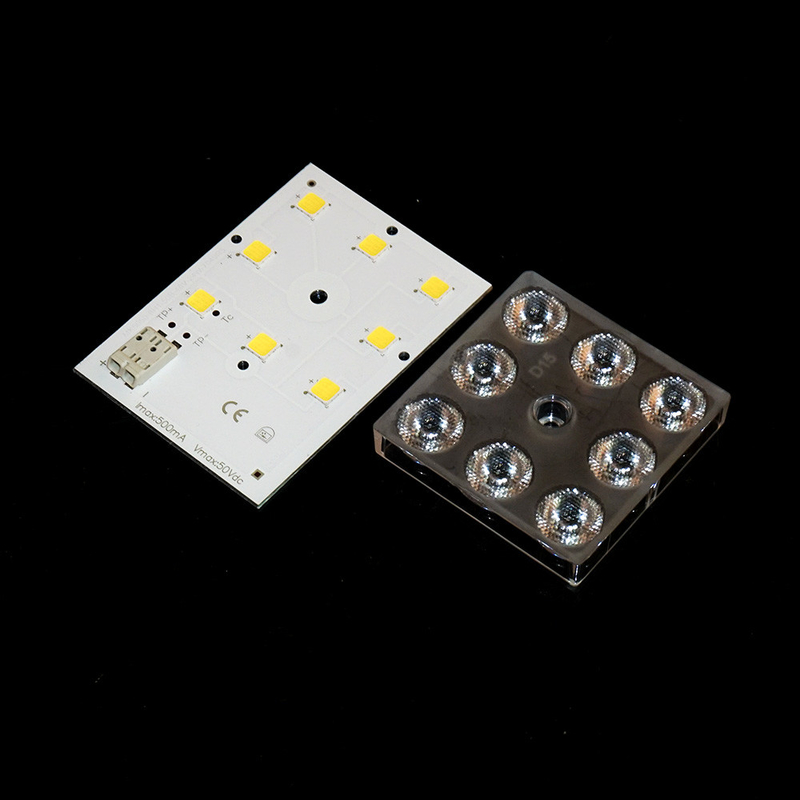

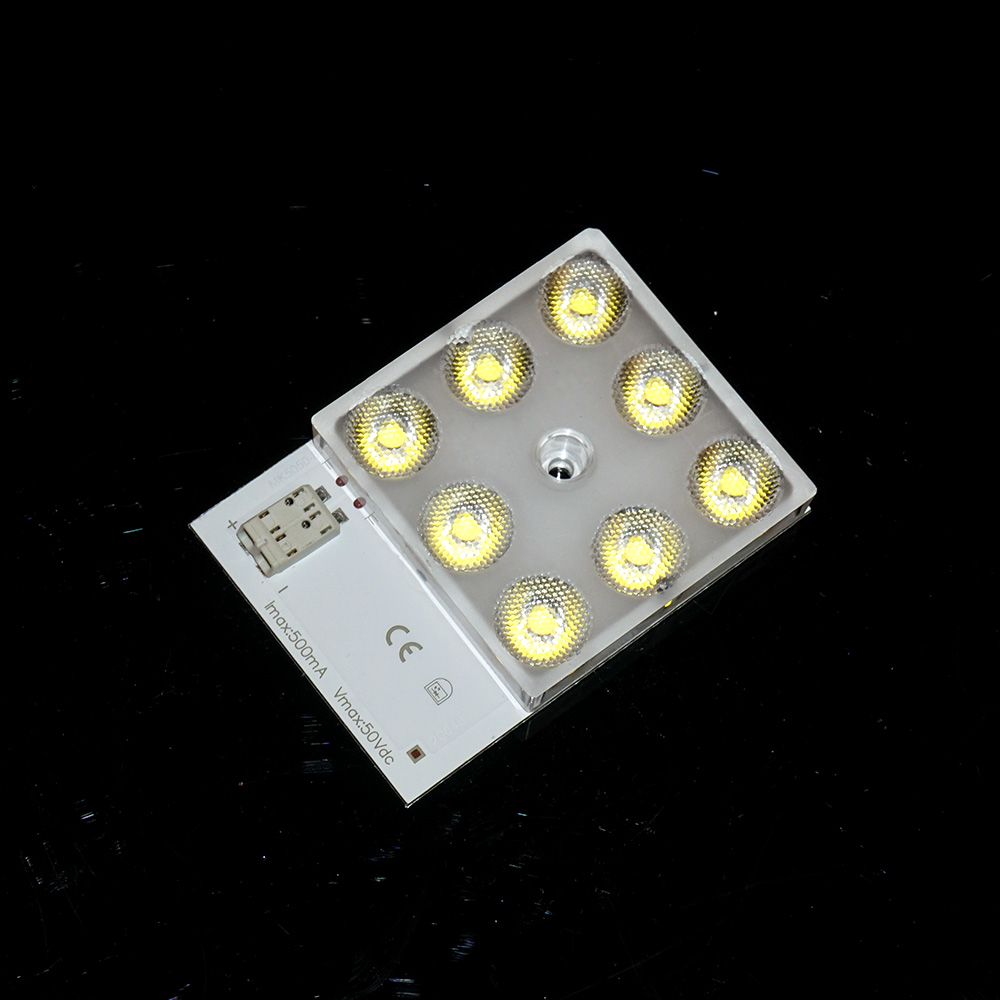

3, Main parts	8 Array lens , silicon gasket+PCB+ 5050 XTE SMD LED
4, Material	PC for lens, Aluminium for PCB board
5, Lens	50X50MM, 147x72 degree TPII-M
6, Transmittance	91%
7,LEDS	5050 150-160LM/W
8, Sample	3-4 work day
9, Delivery	5-7 work days for 10000 sets
10, PCB SIZE	72x49x2.0mm
11,Surface finish	HASL-LEAD FREE
12, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
13,Test way	100% TEST
15, Main market	Europe, South America,North America, Asia
