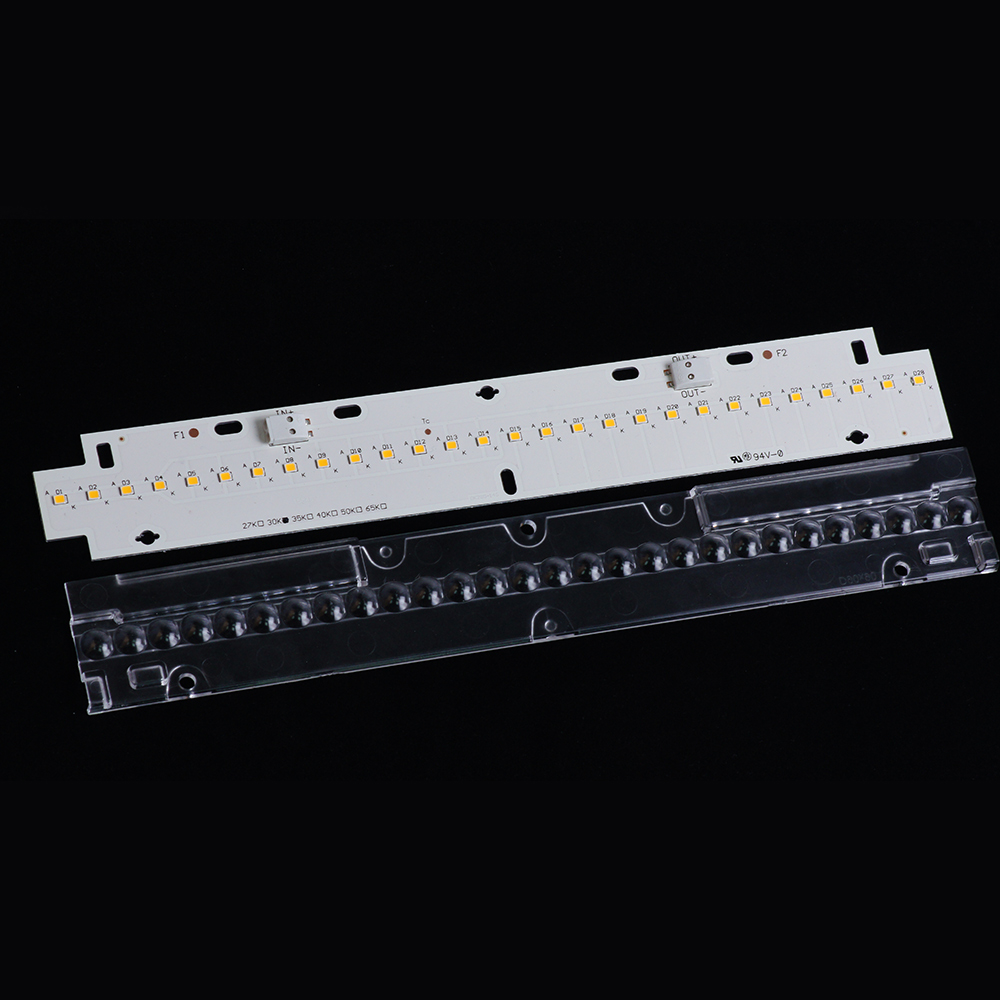

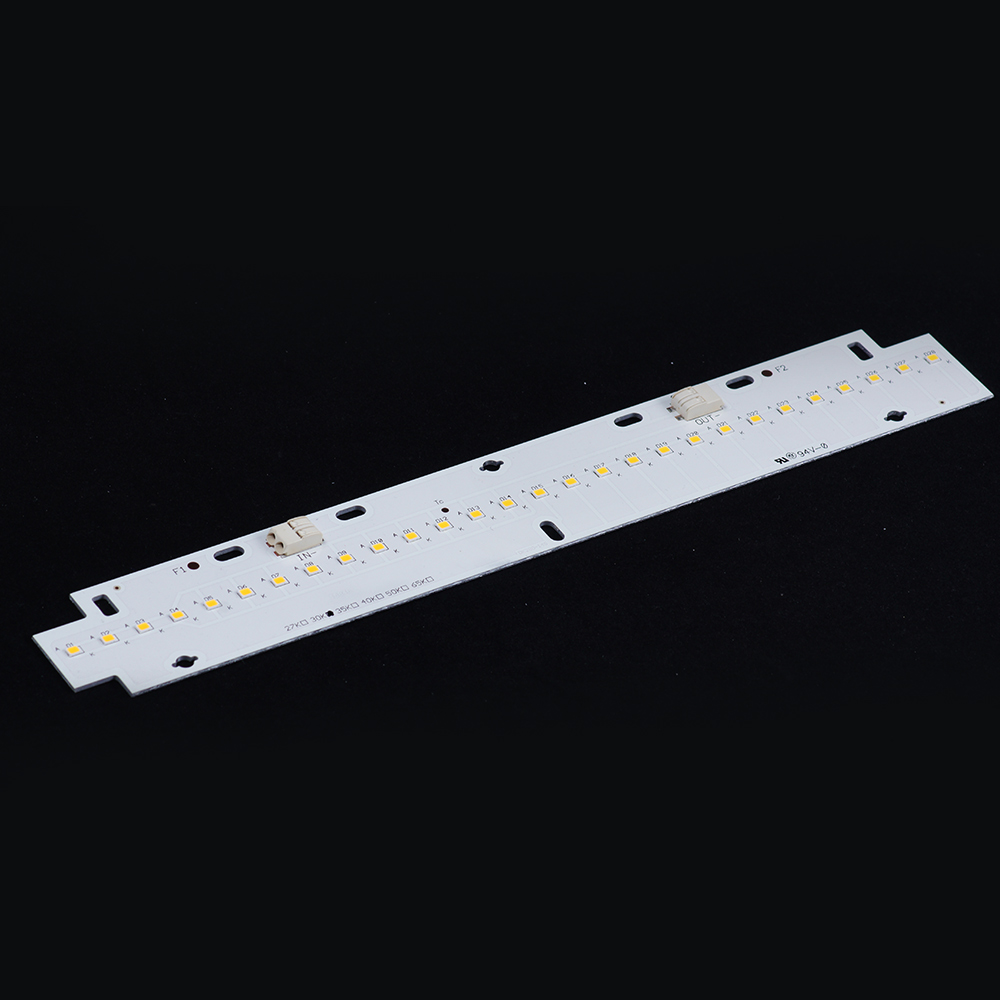

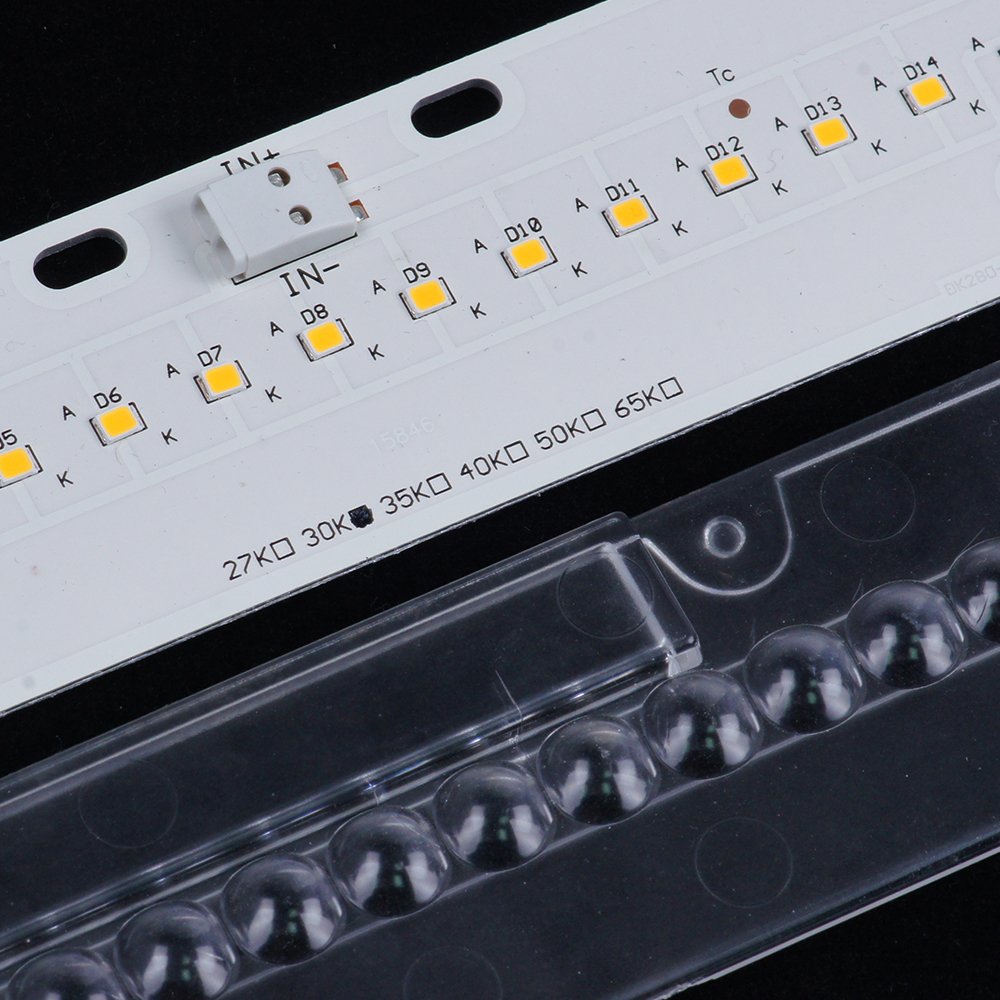

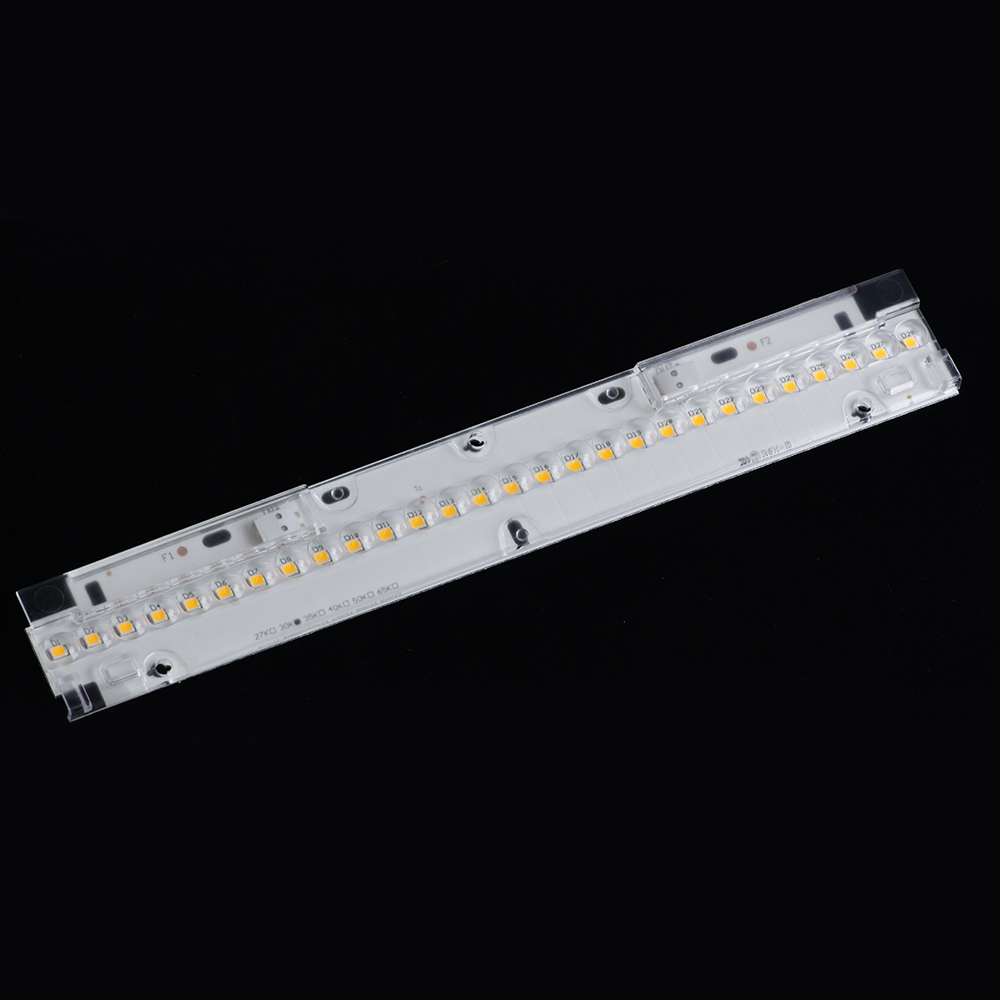

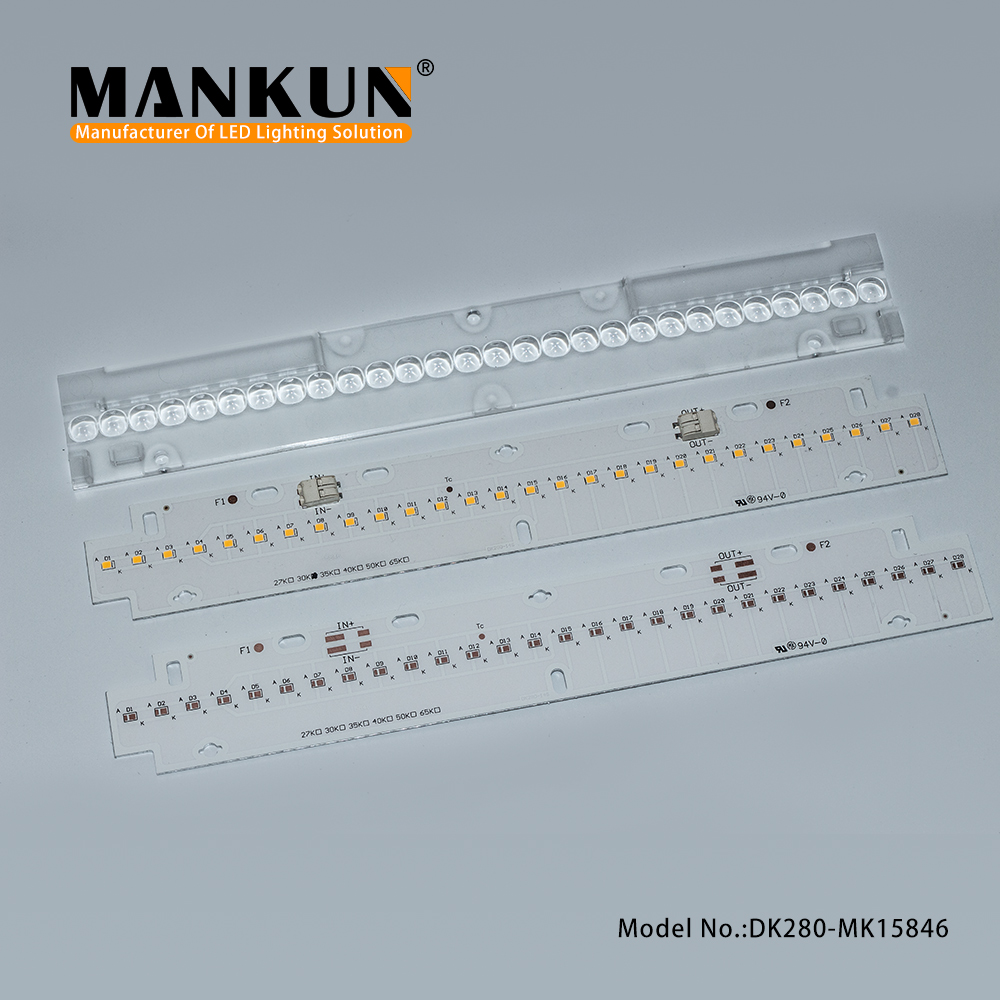

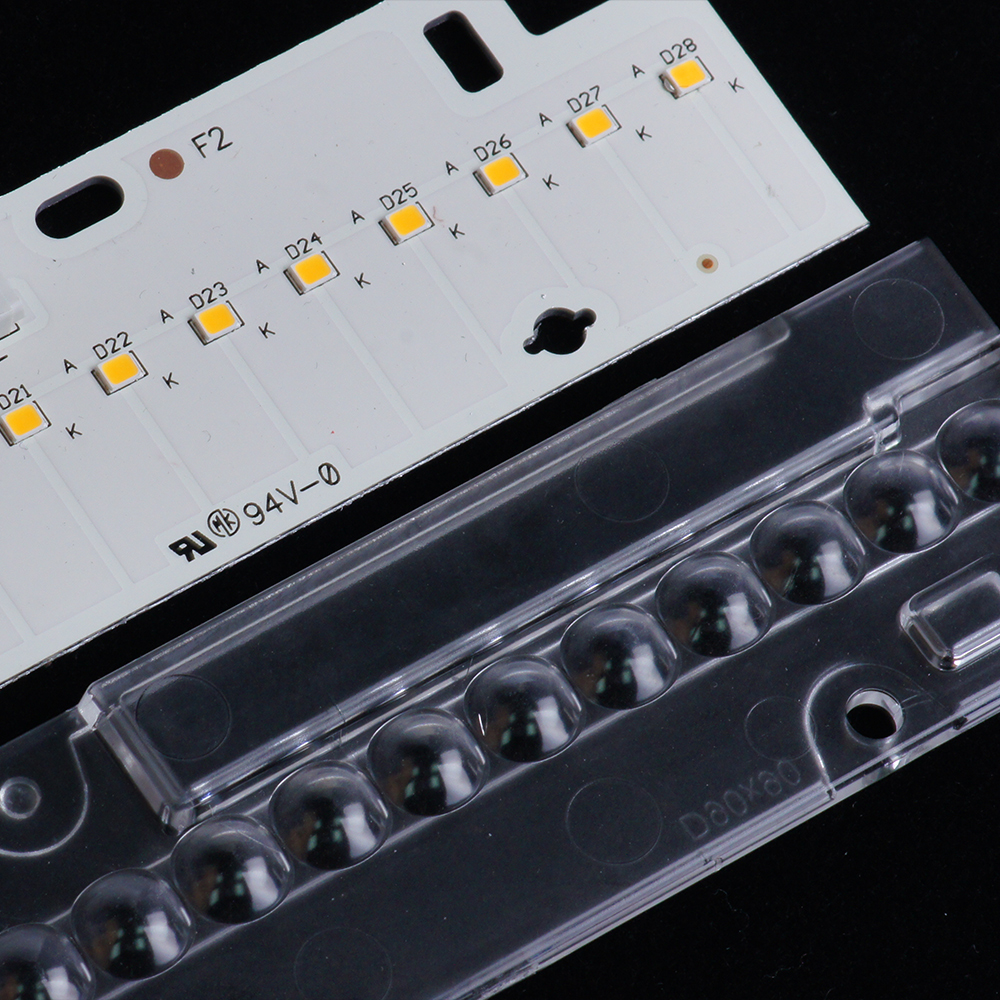

Your Position:Home>Products>LED Module>Zhaga 1f Linear PCB LED Module SMD2835 28PCS SMT PCBA For Ceiling Light LED Module 15846
Linear LED modules |
• LED module efficiency up to 170 lm/W |
• Long life-time: >50,000 hours |
• High color rendering (CRI >80) |
• Color consistency of 5 SDCM |
• Choice of color temperatures (3000 K, 4000 K and 5000 K) |
• One-foot (280 mm) and two-foot (560 mm) lengths |
• Small LED module width of only 40mm |
• Wide temperature (Tc) range from -40 °C to +85 °C |
• Push-in connectors enabling automated wiring |
• Simple installation with M4 screws (Built-in LED module) |
• Three year system warranty |
Specific technical data
Model | CCT K | Current mA | Flux Tp 250C lm | Flux Tp 650C lm | Power Tp 650C W | Efficacy Tp 250C lm/W | Efficacy Tp 650C lm/W | Imax mA | Min. Voltage Tp 650C | Max. Voltage Tp 250C |
MK15845 (B-S3) | 3000 | 120 | 621 | 585 | 3.9 | 159 | 150 | 320 | 30.1 | 36.3 |
180 | 909 | 856 | 5.9 | 154 | 145 | |||||
250 | 1193 | 1126 | 8.4 | 142 | 134 | |||||
4000 | 120 | 652 | 617 | 3.9 | 167 | 158 | ||||
180 | 939 | 891 | 5.9 | 159 | 151 | |||||
250 | 1252 | 1185 | 8.4 | 149 | 141 | |||||
5000 | 120 | 663 | 628 | 3.9 | 170 | 161 | ||||
180 | 956 | 903 | 5.9 | 162 | 153 | |||||
250 | 1277 | 1202 | 8.4 | 152 | 143 | |||||
6500 | 120 | 652 | 617 | 3.9 | 167 | 158 | ||||
180 | 939 | 915 | 5.9 | 159 | 155 | |||||
250 | 1252 | 1185 | 8.4 | 149 | 141 | |||||
MK15846(B-S3) | 3000 | 120 | 795 | 750 | 5.0 | 159 | 150 | 320 | 38.3 | 46.2 |
180 | 1155 | 1088 | 7.5 | 154 | 145 | |||||
250 | 1520 | 1434 | 10.7 | 142 | 134 | |||||
4000 | 120 | 835 | 790 | 5.0 | 167 | 158 | ||||
180 | 1193 | 1133 | 7.5 | 159 | 151 | |||||
250 | 1595 | 1509 | 10.7 | 149 | 141 | |||||
5000 | 120 | 850 | 805 | 5.0 | 170 | 161 | ||||
180 | 1215 | 1148 | 7.5 | 162 | 153 | |||||
250 | 1627 | 1531 | 10.7 | 152 | 143 | |||||
6500 | 120 | 835 | 790 | 5.0 | 167 | 158 | ||||
180 | 1193 | 1163 | 7.5 | 159 | 155 | |||||
250 | 1595 | 1509 | 10.7 | 149 | 141 | |||||
MK15844(B-S3) | 3000 | 200 | 939 | 885 | 5.9 | 159 | 150 | 480 | 27.3 | 33 |
300 | 1371 | 1291 | 8.9 | 154 | 145 | |||||
400 | 1733 | 1635 | 12.2 | 142 | 134 | |||||
4000 | 200 | 986 | 933 | 5.9 | 167 | 158 | ||||
300 | 1416 | 1344 | 8.9 | 159 | 151 | |||||
400 | 1818 | 1721 | 12.2 | 149 | 141 | |||||
5000 | 200 | 1003 | 950 | 5.9 | 170 | 161 | ||||
300 | 1442 | 1362 | 8.9 | 162 | 153 | |||||
400 | 1855 | 1745 | 12.2 | 152 | 143 | |||||
6500 | 200 | 986 | 933 | 5.9 | 167 | 158 | ||||
300 | 1416 | 1380 | 8.9 | 159 | 155 | |||||
400 | 1818 | 1721 | 12.2 | 149 | 141 | |||||
The mentioned data can have a 10% tolerance. |
