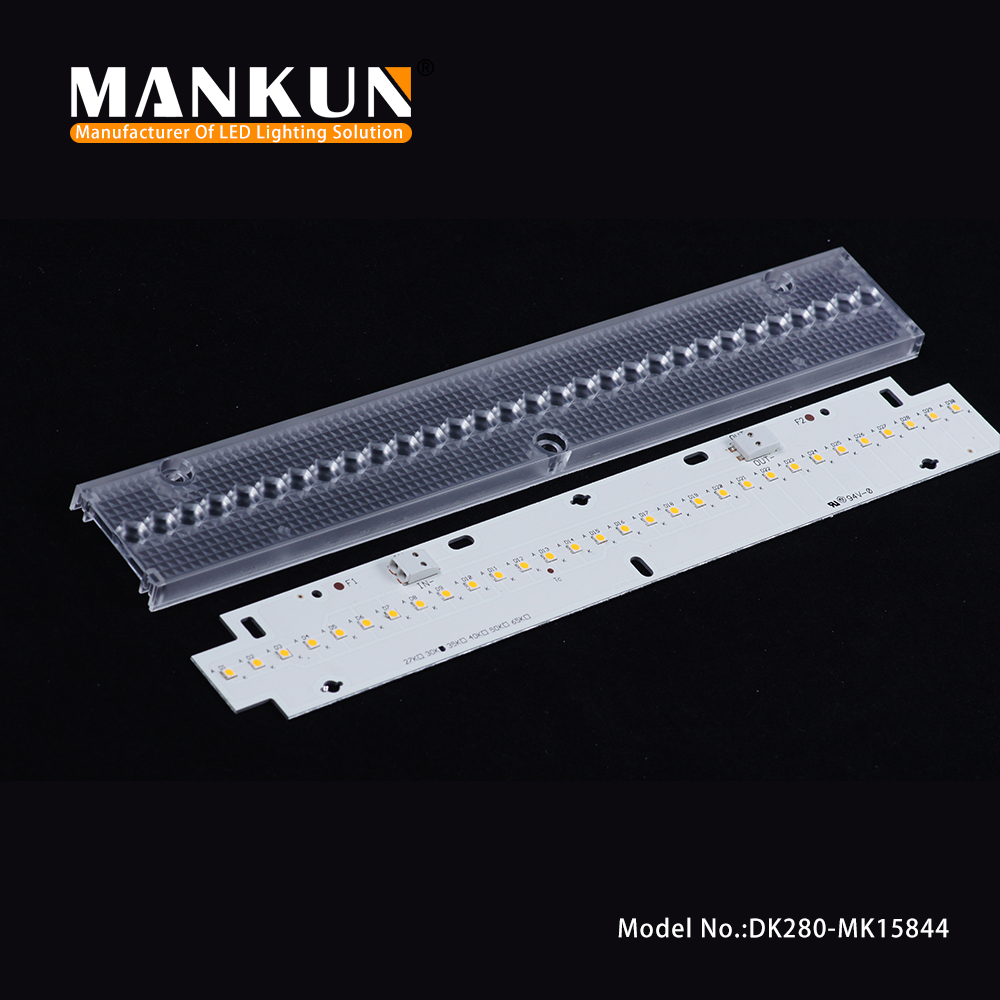

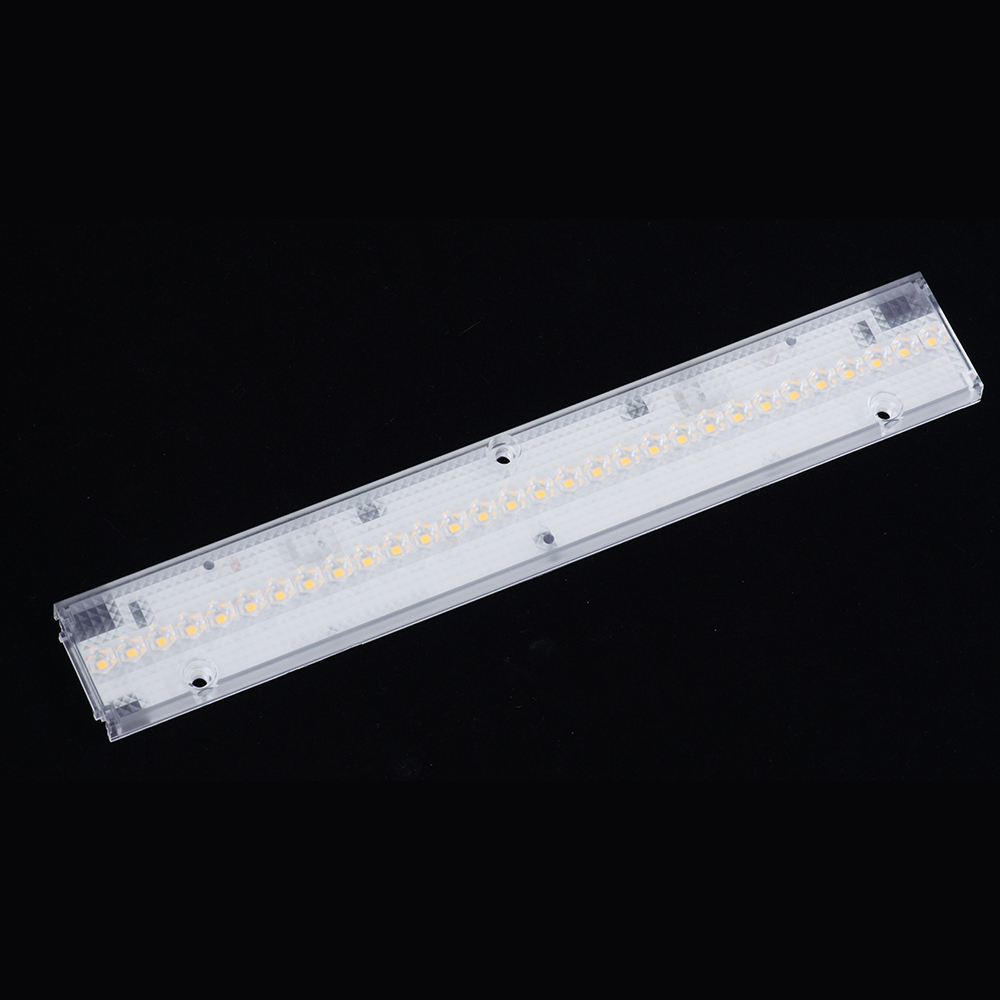

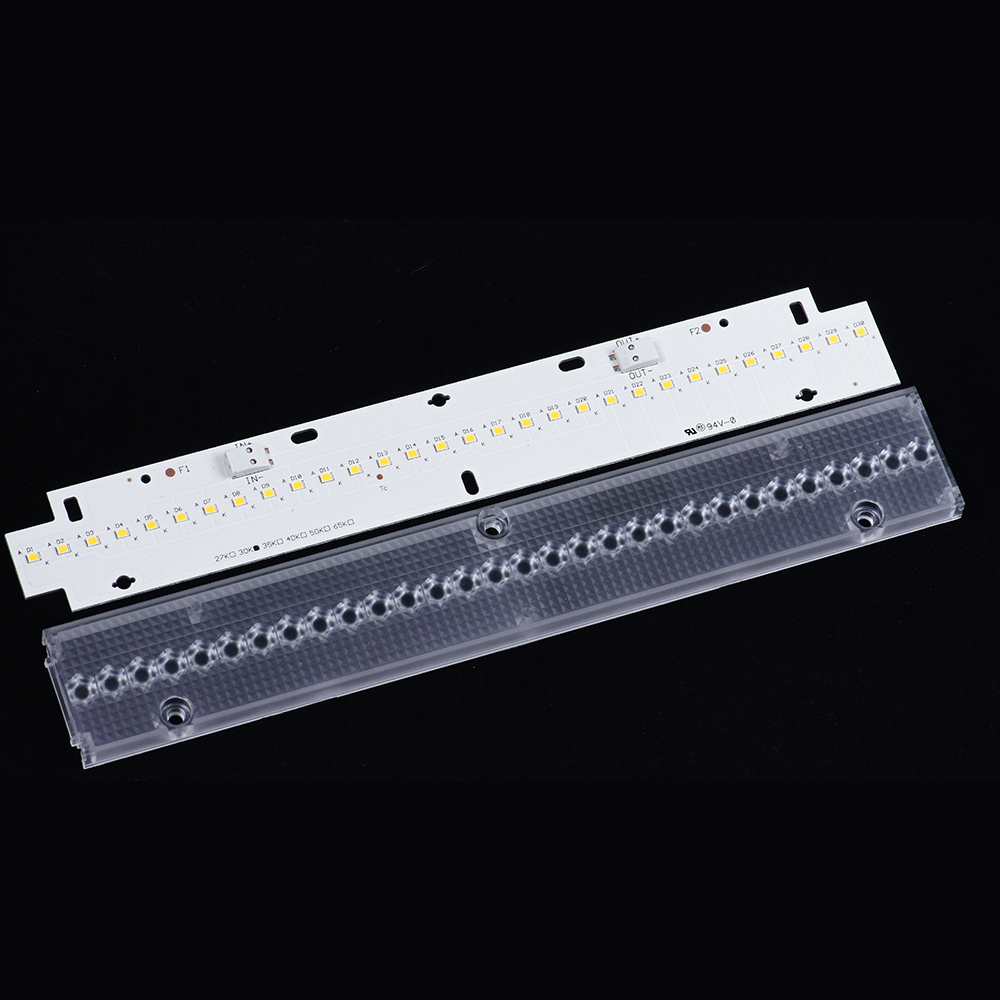

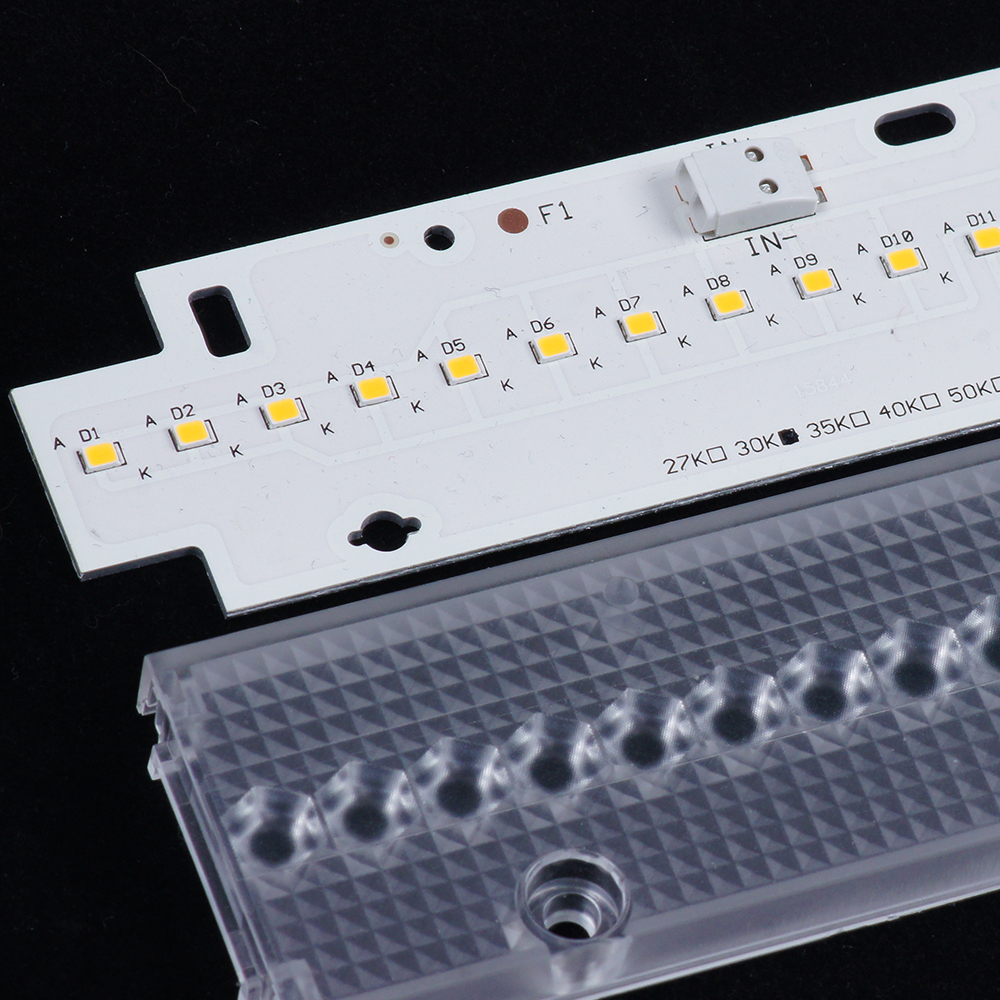

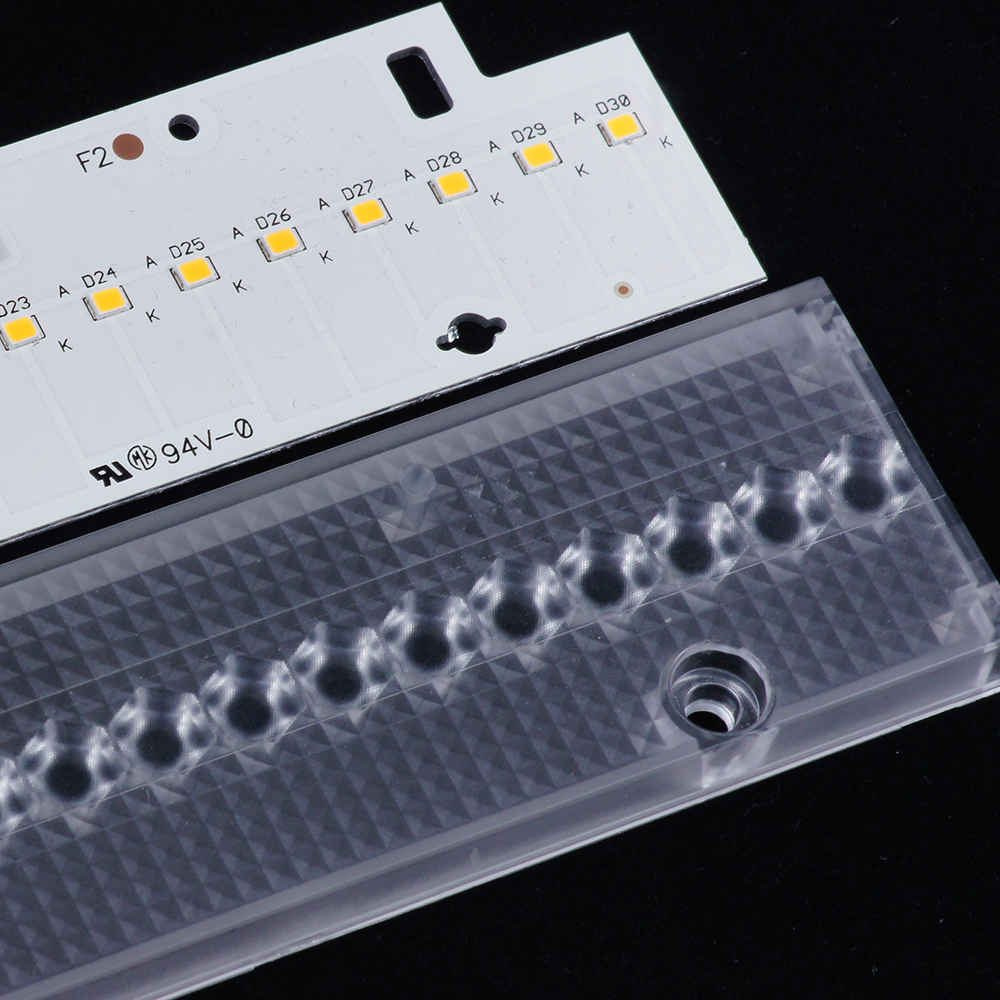

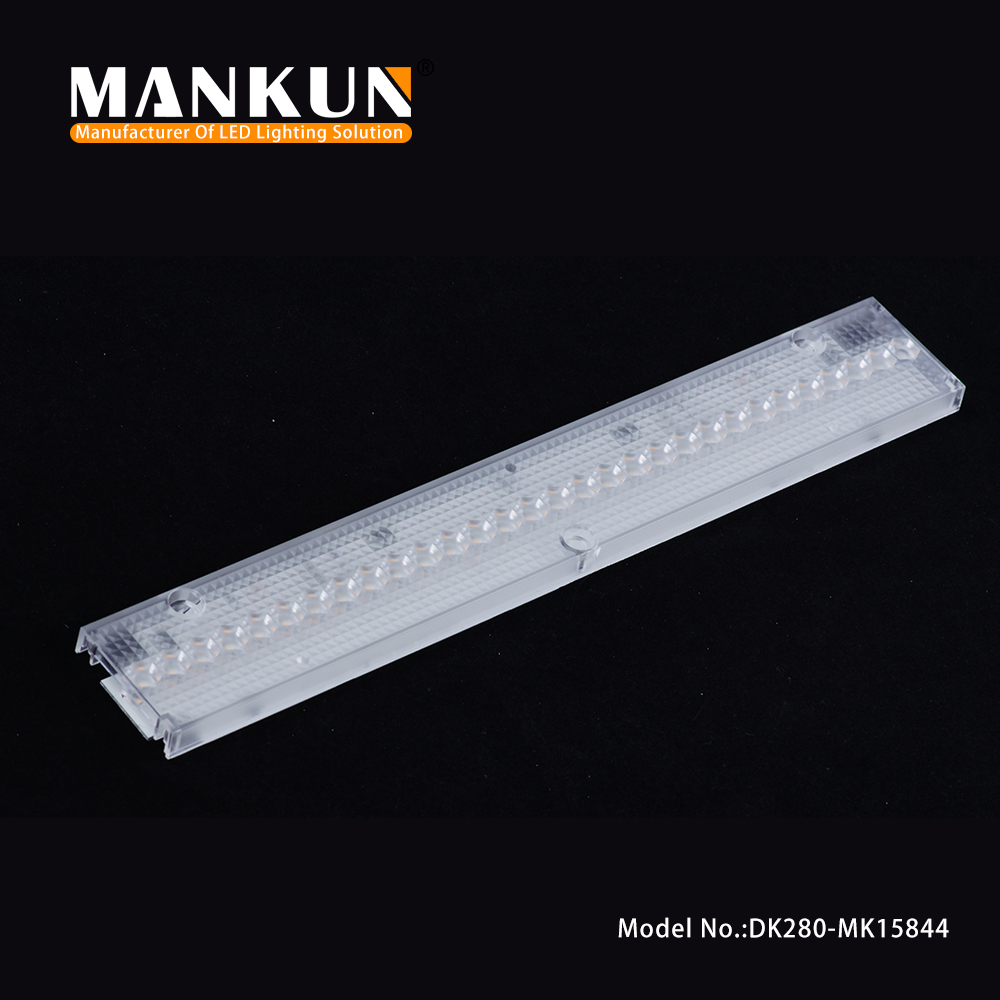

CE RoHS 15W SKD Lens Linear LED Module SMD2835 30LEDs For Indoor Lighting 15844

CE RoHS 15W SKD Lens Linear LED Module SMD2835 For Indoor Lighting

Zhaga Standard 2835 LED Linear Module For Indoor Lighting, SKD Lens Led Module

Product description

• Optimal solution for linear and panel lights where cost is main priority, together with the new LC lp SNC and

  ADV LED Driver provides best system efficiency

• SELV module – the single module has a forward voltage < 60 V

• Terminals – 2 variants: 2 terminals for serial wiring, 4 termninals for parallel, serial or robot wiring

• Typ. luminous flux 1,250 and 2,400 lm

• Effciency of the module up to 170 lm/W

• High colour rendering index CRI > 80

• Small colour tolerance MacAdam 5

• Colour temperatures 3,000, 4,000 and 6,500 K

• Module dimension 40 x 280 mm and 40 x 560 mm (ZHAGA compliant)

• Perfectly uniform light, even if several LED modules are used together in a line

• Push terminals for quick and simple wiring of LED module to LED module

• Simple installation (e.g. ACL push fix)

• Long life-time up to 60,000 hours

• 5 years

Technical data

Specific technical data

Customize for your own lighting various size OEM are available
1. DC or AC 230V directly, Integrated IC chip, without external driver.
2. Free combination to different wattage and size(shape)
3. Ideal for retrofit and decoration engineerings,can be assembled into different shape at will.
4. LumiLEDs 2835 LEDs, CRI>85 Ra, 140lm/w
5. 5 different size according to zhaga standard.
6. Huge market-grille lamp replacement/decoration engineering or projects
