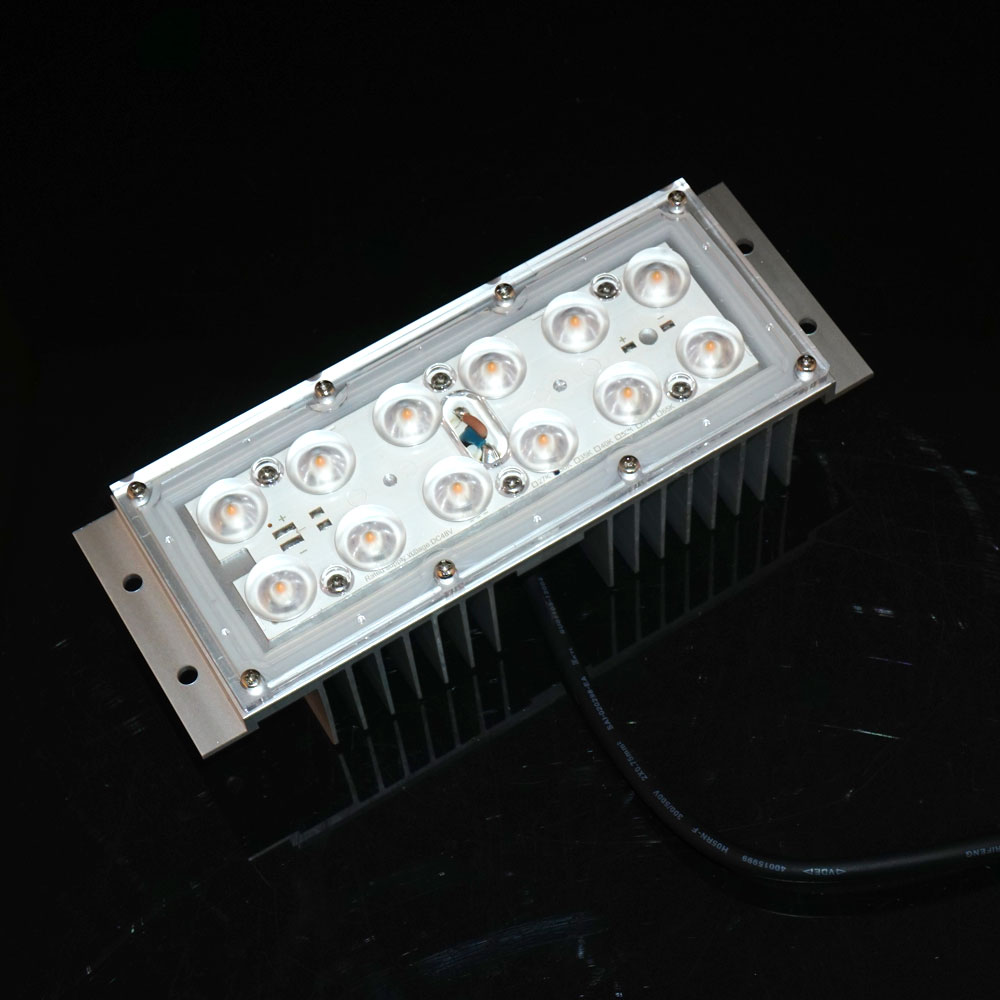

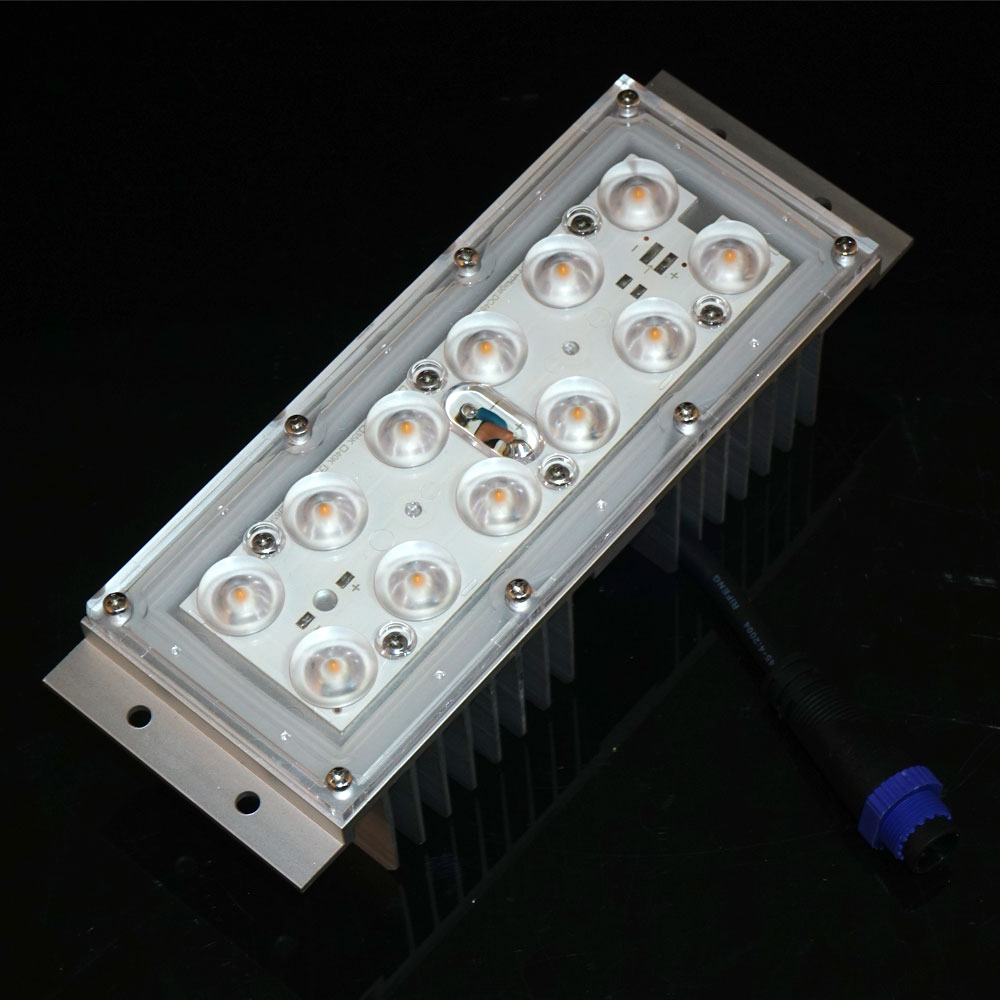

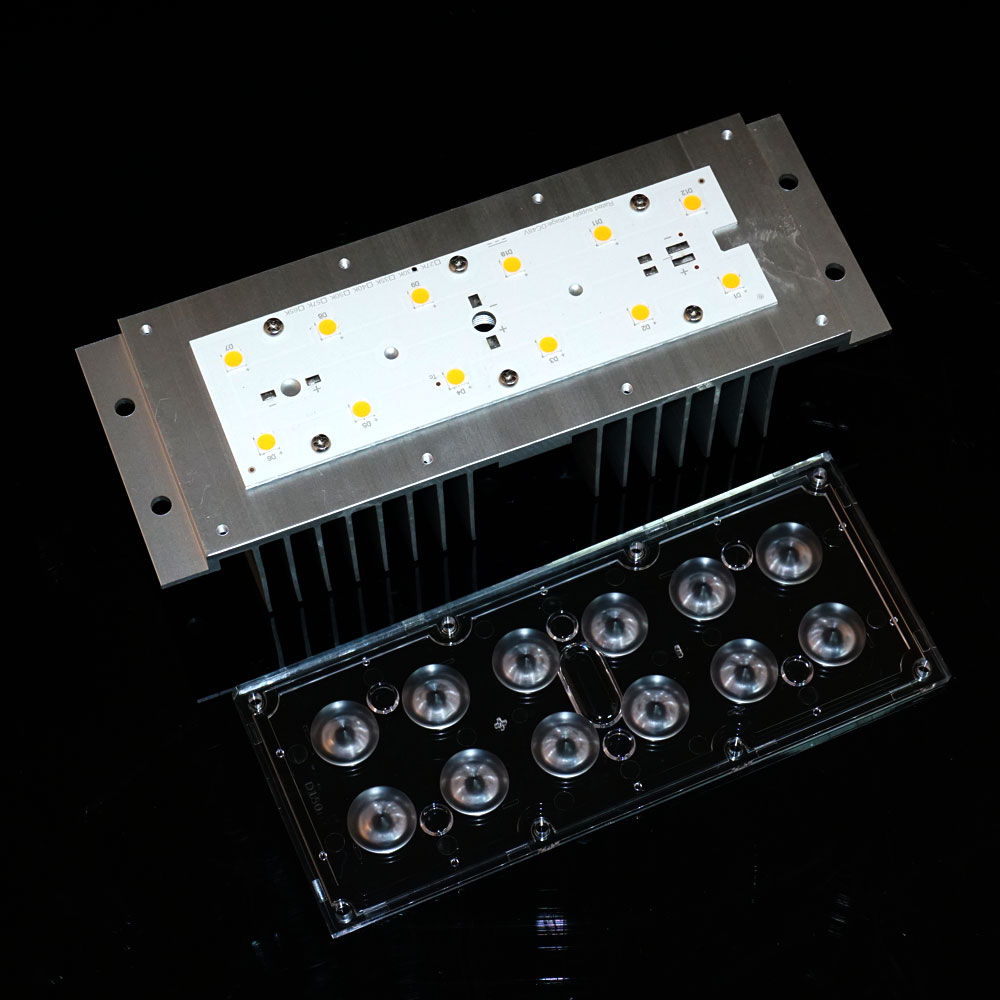

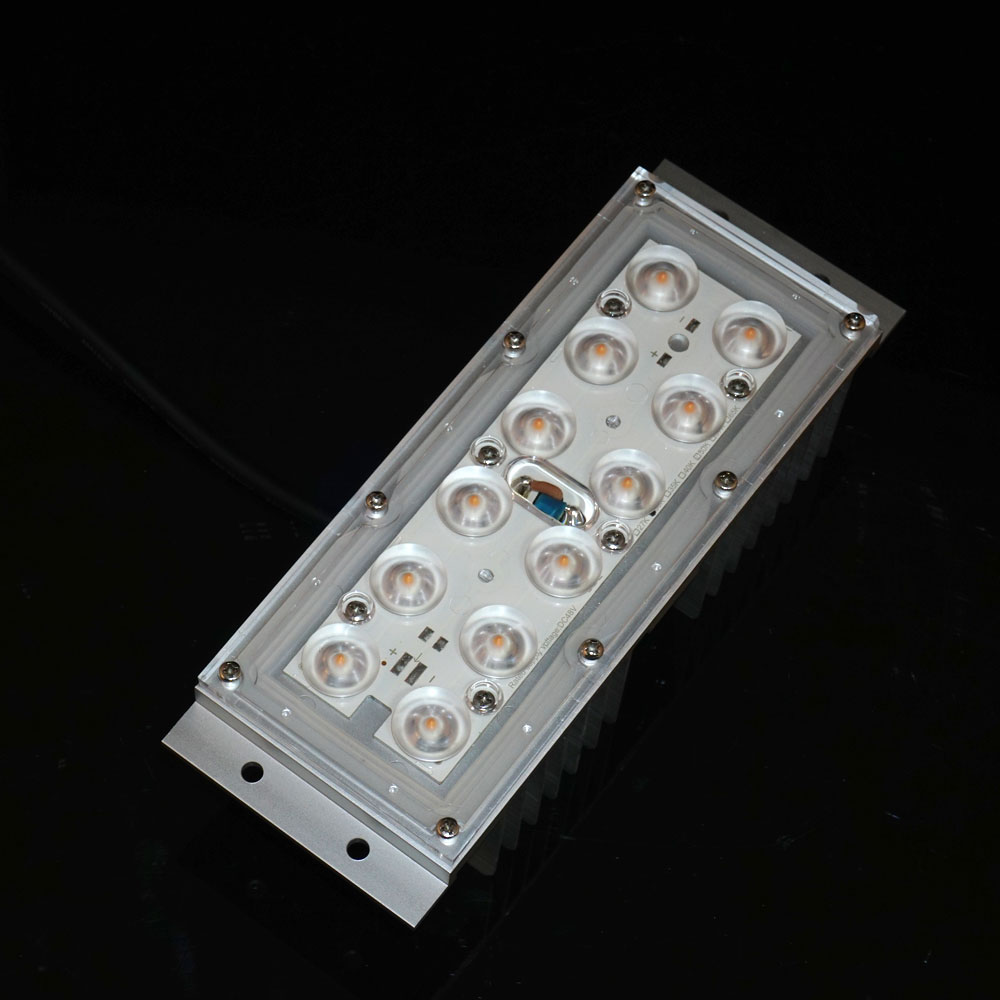

Waterproof IP67 LED Street Light Module Outdoor Light Field Flood Light 50w
Product Specification | |
Model No. | DK173-17683 |
Input Voltage | DC48V |
Input Current | 900mA |
Product Finish | Silver |
Power | 30W |
Luminouse Flux | 4500LM |
LED Chip | 5050 (12Pcs) |
Beam Angle | 151x81 |
Color Option | warm white/Natural White/ Cool white |
CRI | Ra>70 |
Work Environment | Temperature:-40℃-50℃ |
Humidity:10%-95% | |
IP Level | IP66 |
Lifespan | >50,000Hours |
Heat Sink Material | Aviation aluminum |
Dimensions | L176xW71xH47mm |
Lens Material | PMMA |
Connector | M15 |
Weight | 0.33kg
|
Features:
Use prefect anodizing aluminum alloy heatsink,improve the service life of radiator.
Excellent operating temperature -40°C ~ 50°C
High performance design with multi-chips package 5050 L E D source.Stable performance,low light failure and NO dead lights.
Variety beam angles, 140x30°/148x50°/150x60°/140°/30°/60°/90°/80x40°
High safety, low voltage input is safety for peopel, which effectively prevents electric shock and electric leakage.
Easy to assemble and maintain with national standard M15 electrical interface,achieved plugged and play,only need loosening the screw during maintenance.
Green product,no UV,IR radiation or mercury pollution.Passed IEC62471.
With excellent housing design reach IP66 rating.
Life-span over 50,000 hours,5 years warranty.
Main parameter:

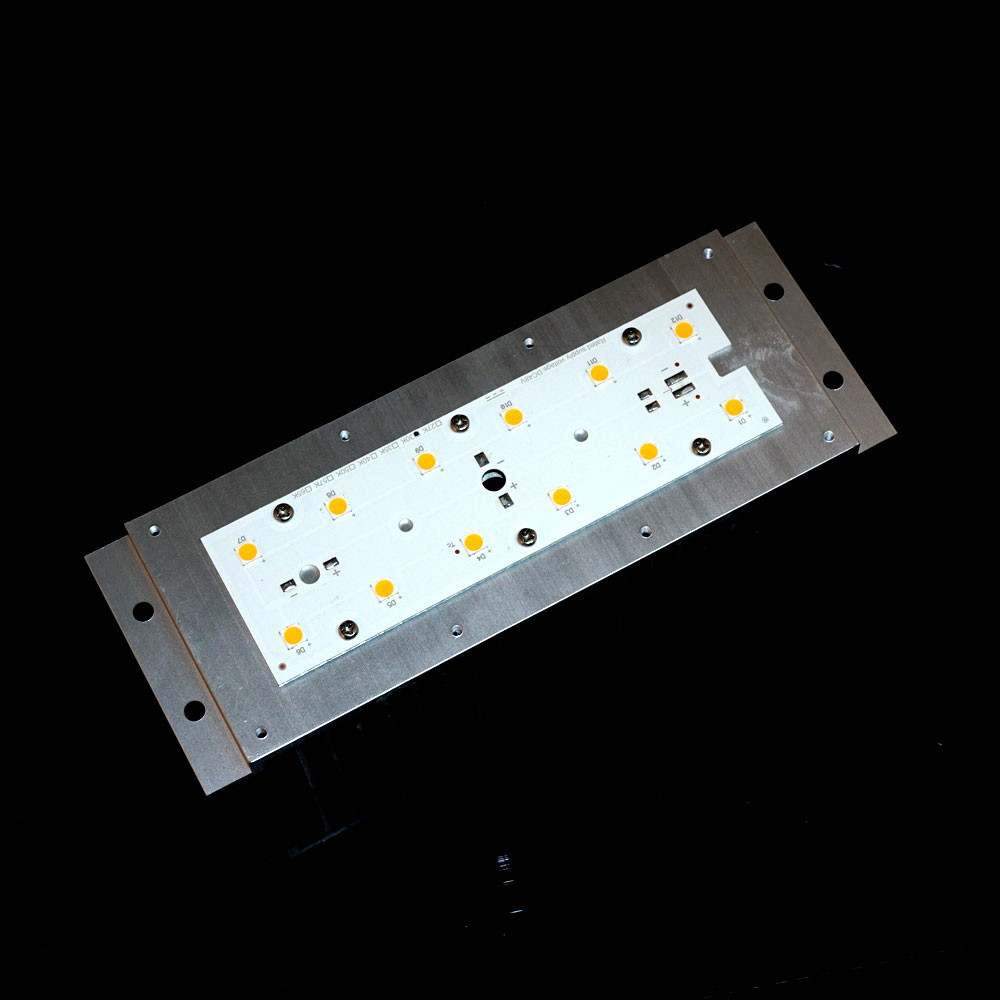

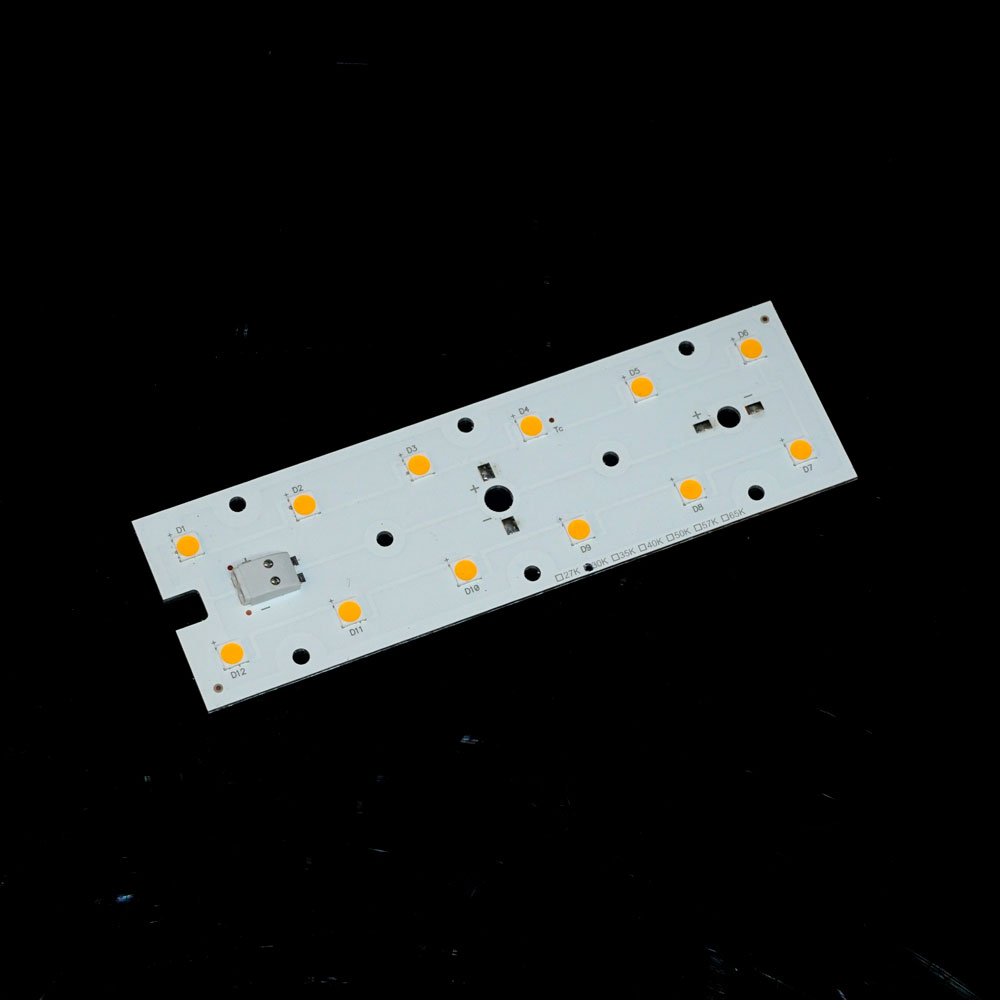

LED Light Source | 5050x 12pcs |
Output Power | 15w 20w 30w 40W |
Luminous Flux | 2160lm,3400lm,4800lm,6000lm |
Input Current | 250ma,420ma,630ma,830ma |
Input Voltage Range | 48Vdc |
Lighting Distributions | 140x30°/148x50°/150x60°/140°/30°/60°/90°/80x40° |
CCT | 3000K, 4000K, 5000K, 6000K |
IP Class | IP66 |
Product Fixture Size | 200*72*55mm, 430g |
Packing Details | xx*xx*xxmm (40pcs), 19.8kgs |
