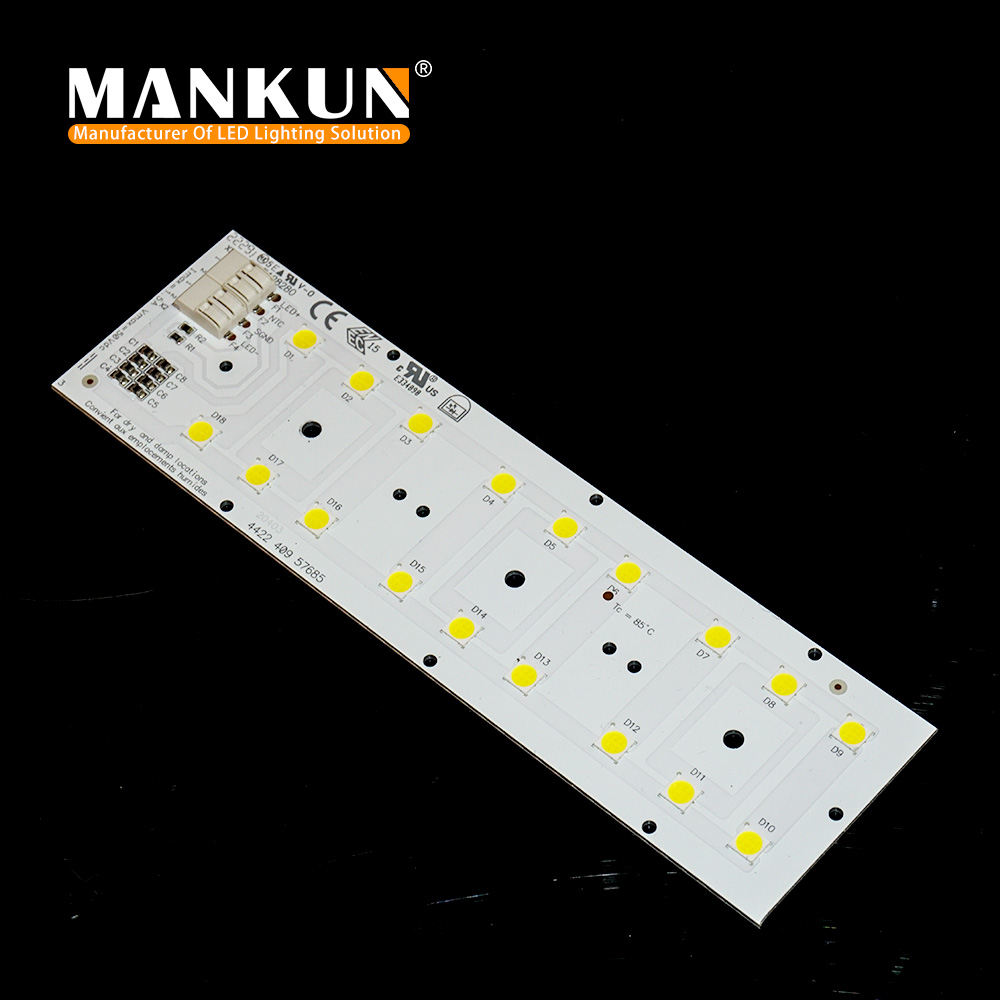

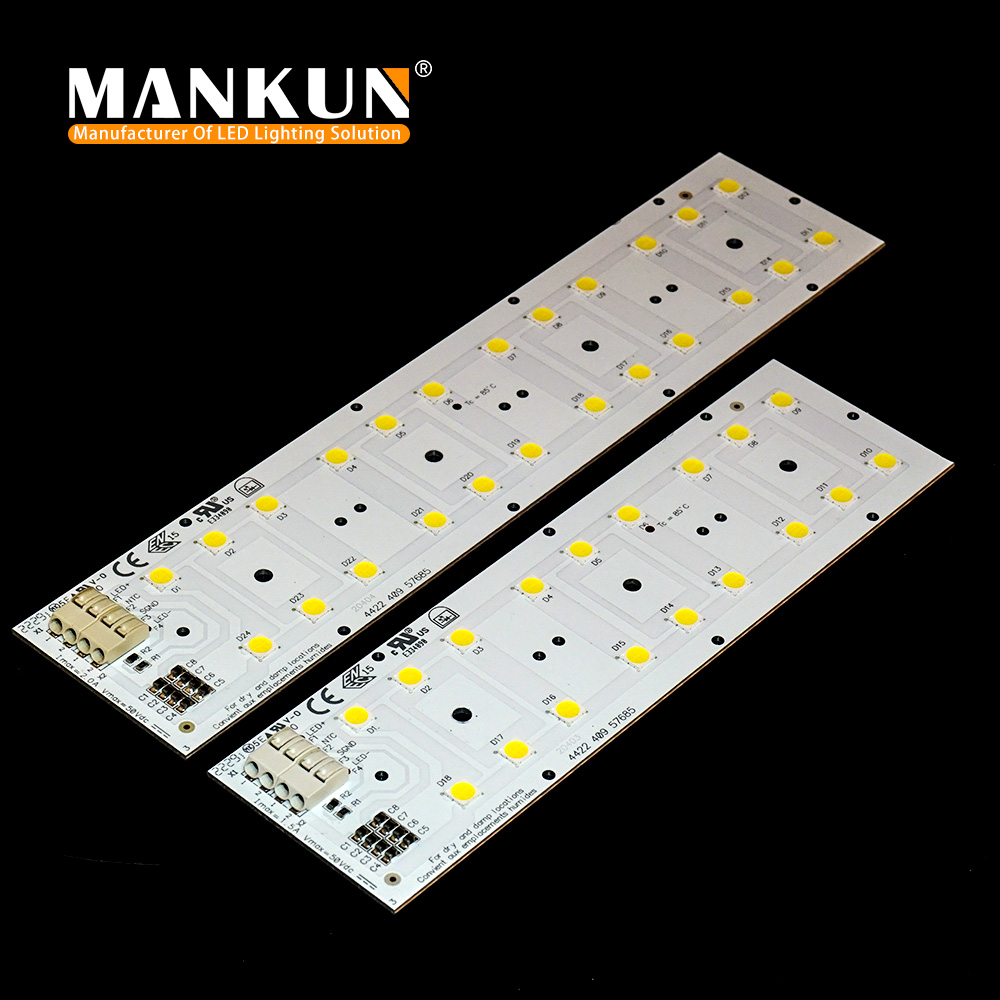

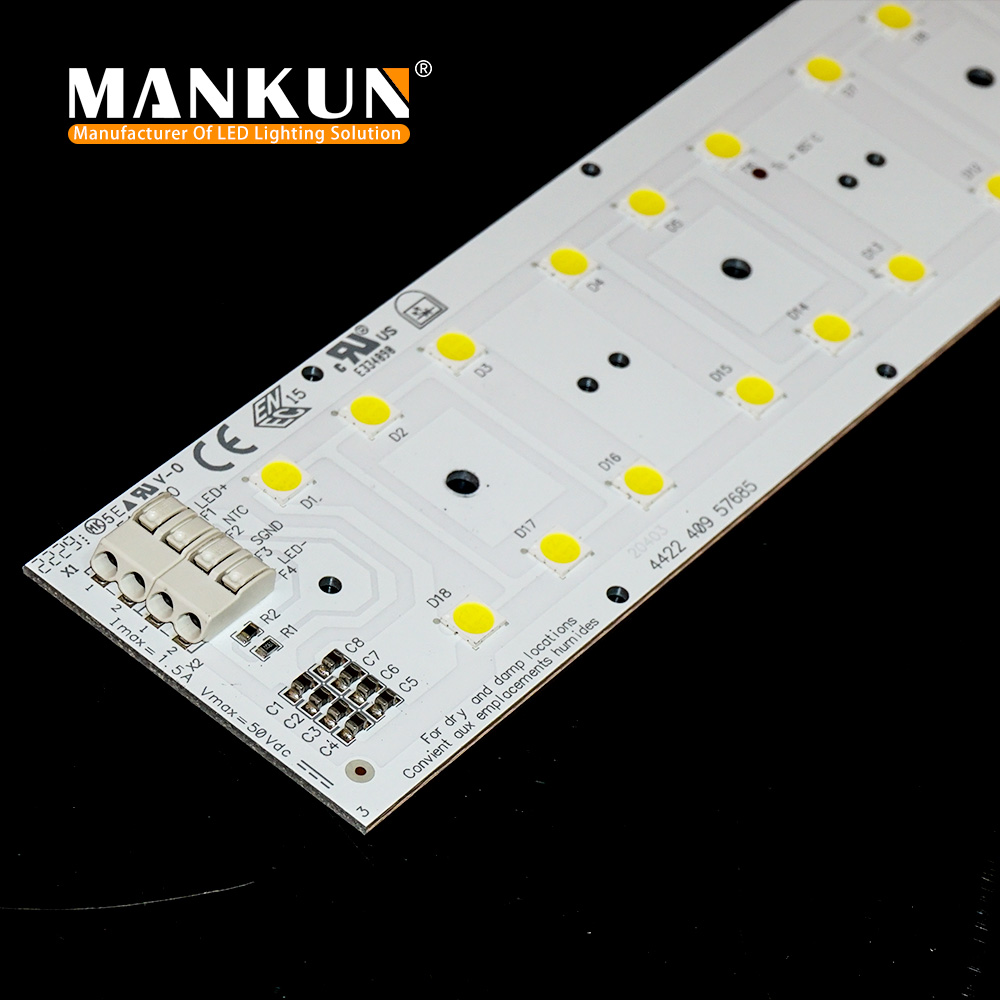

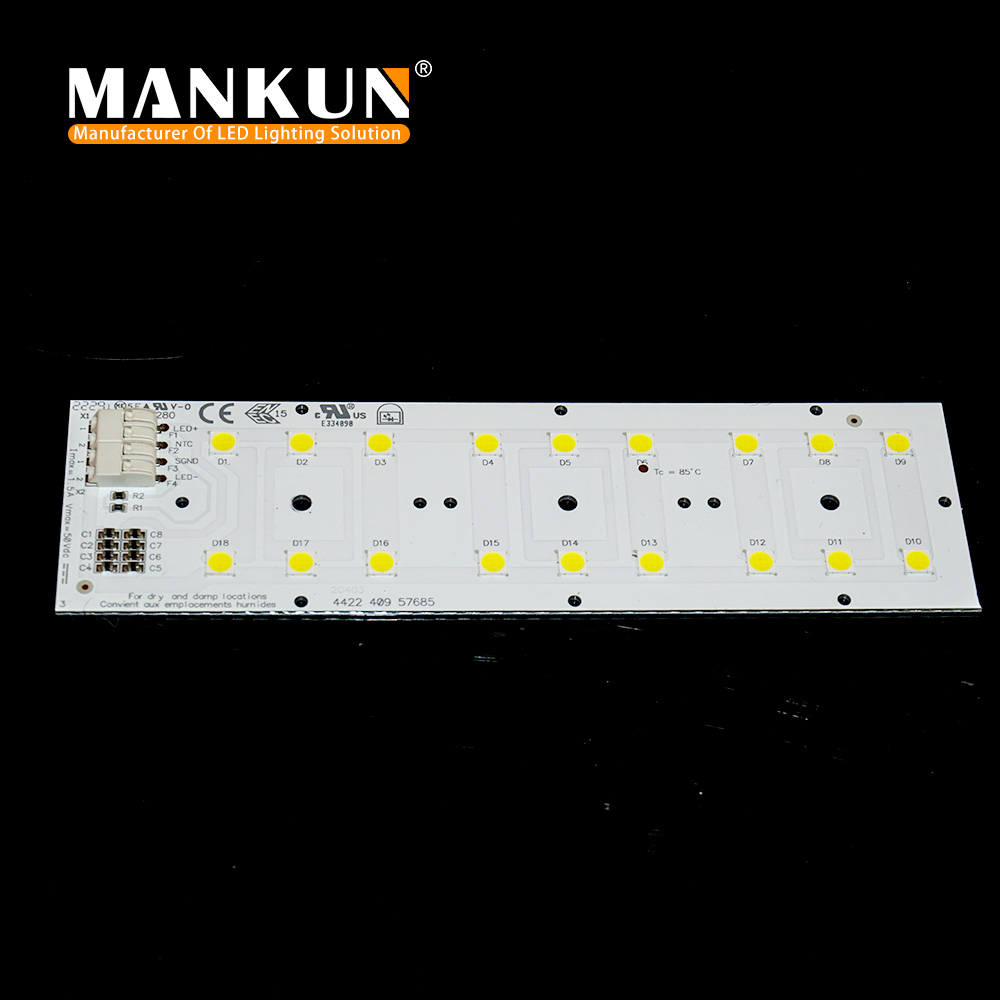

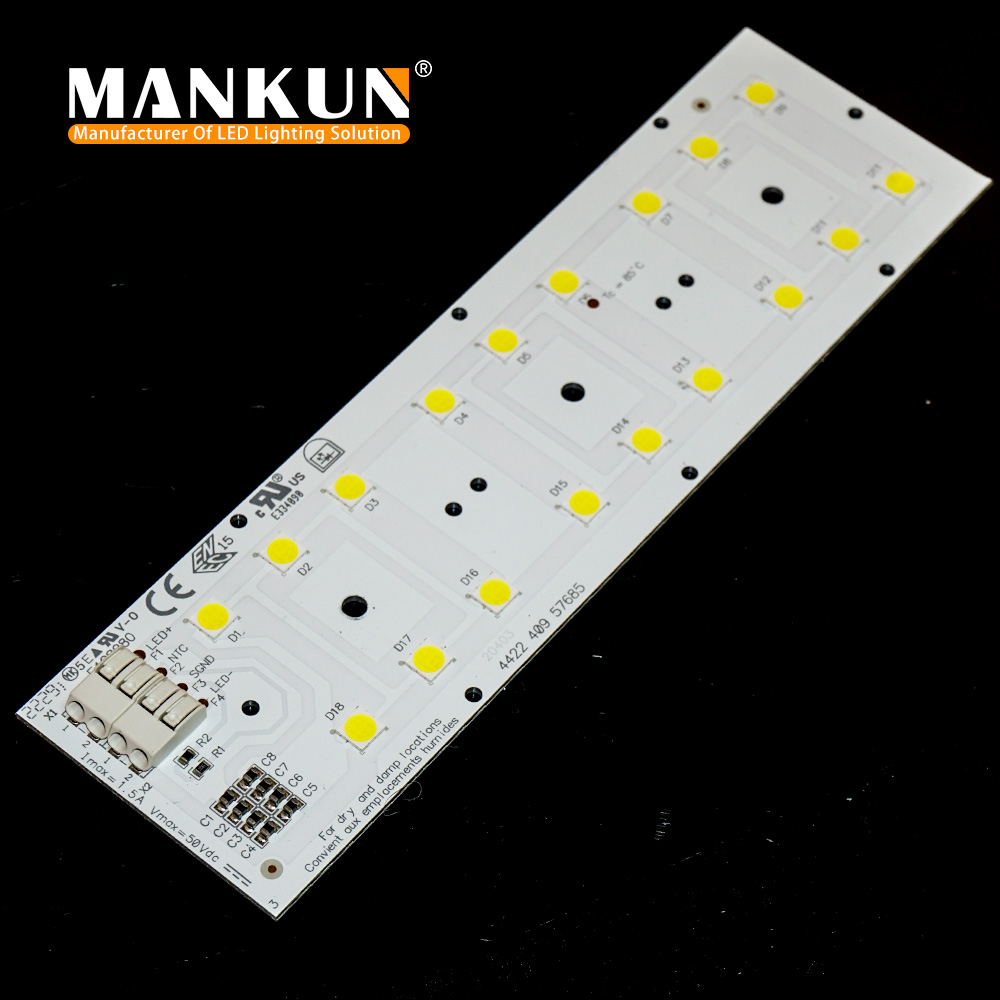

Zhaga 49mm Width 50W LED Street Light Module Tunnel Light LED PCB Module
Specification of LED street light module
| Power: | MK5050-50W-AL20403 |
| PCB Size: | 172*49*1.6mm |
| LED: | 18pcs LumiLEDs LED 5050 |
| CRI: | ≥80±5Ra |
| Lumen efficiency: | 154 lm/w |
| Lumen output: | 7600 lm |
| Lumen depreciation: | 5 |
| CCT: | 3000K/4000K/6000K |
| Voltage: | 48V |
| PCB Material: | Aluminum base |
| Bean angle: | 120° |
| Package: | blister package |
| Certificate: | CE, RoHS |
| Application: | led street light, flood light,Tunnel light, High bay light |
Features of LED street light module
Q1. What is the warranty of the module?
A1. It's 5 year's warranty
Q2. Can we get samples for testing?
A2. Yes, the sample order is welcome.
Q3. How to proceed with an order for the led Module?
A3: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
