Your Position：Home>Products>LED Module>50 Watt SMD5050 LED Street Light Module Width 50mm Smart PCB Board 20042

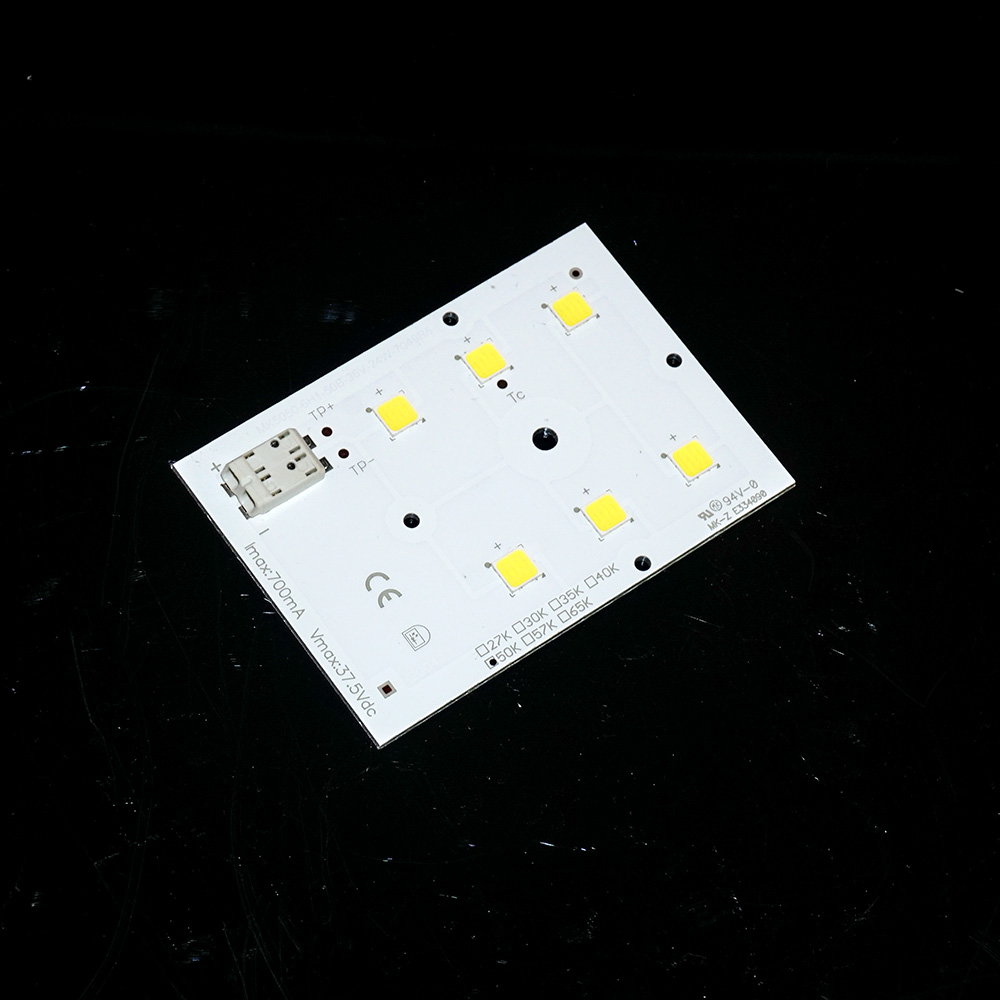

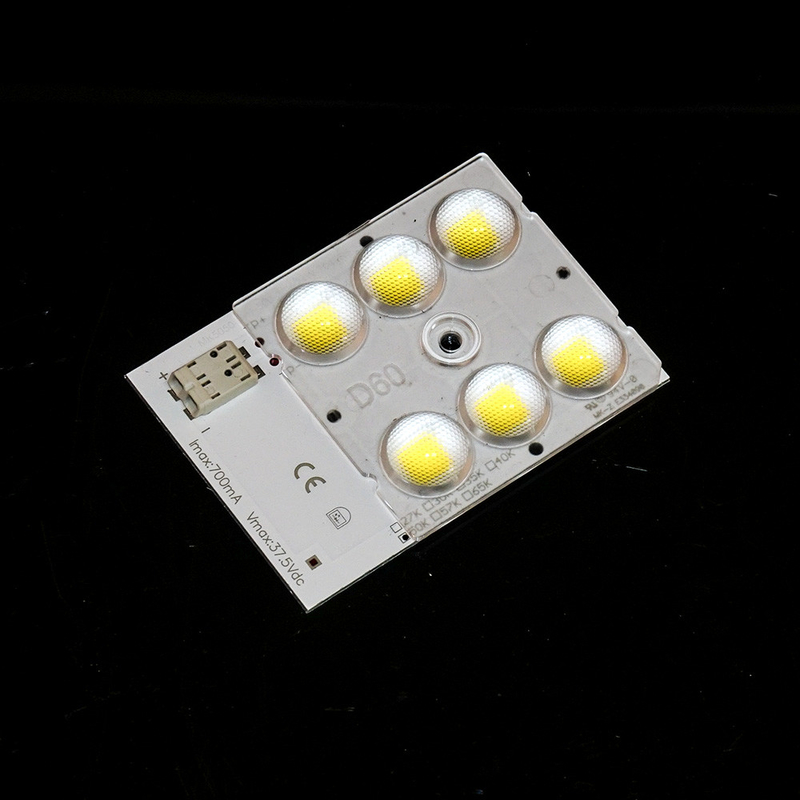

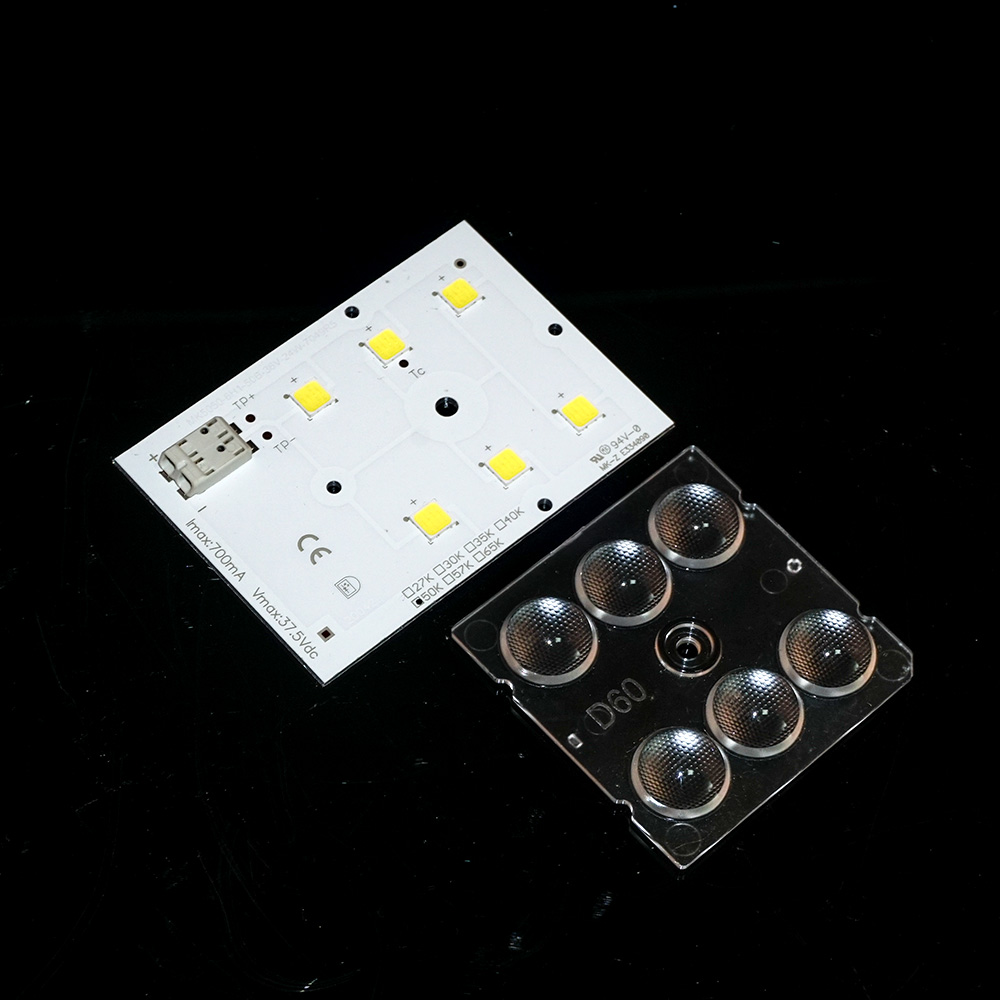

50 Watt SMD5050 LED Street Light Module Width 50mm Smart PCB Board
Product Specification
Item No. | MK5050-6H1-AL20042 |
Dimension | 49*121*1.6mm |
Power | 20W |
Luminous flux | 3000lm |
Lamp efficiency | 100~120lm/w |
Light source | Cree SMD5050 |
Light degradation rate | 25000h ≤ 30% |
Color rendering index | Ra>80 |
Power factor | PF≥0.96 |
Beam angle | 120 |
Rated life | ≥50000h |
Color temperature | 2700K-6500K all available |
Working temperature | -30~+50°C |
Input wattage | 1.0A 30-36V/1.2A 36-44V |
Brand | SMD5050 chips & Meanwell ELG Driver |
Warranty | 5 years |
Certificate | CE, ROHS, EMC, LVD |
Application | street light, flood light, tunnel light,garden light |
Mounting way | assemble |
Payment terms | By T.T, Western Union, paypal, etc |
Features:
1. High luminous efficiency, 150lm/W.
2. High CRI, Ra>70.
3. Full Watts, high performance heat dessipattion.
4. Aluminium(6063) drawing good for thermal conductivity
5. Color tempreture(option): warm white/pure white.
6. Beam Angle: 15a°x8a
7. Fitting way:holder
8. High Tranmittance: 93%
9.Lifespan can be reached 50,000 hours
Application: Use for Stree Light, Flood light ...

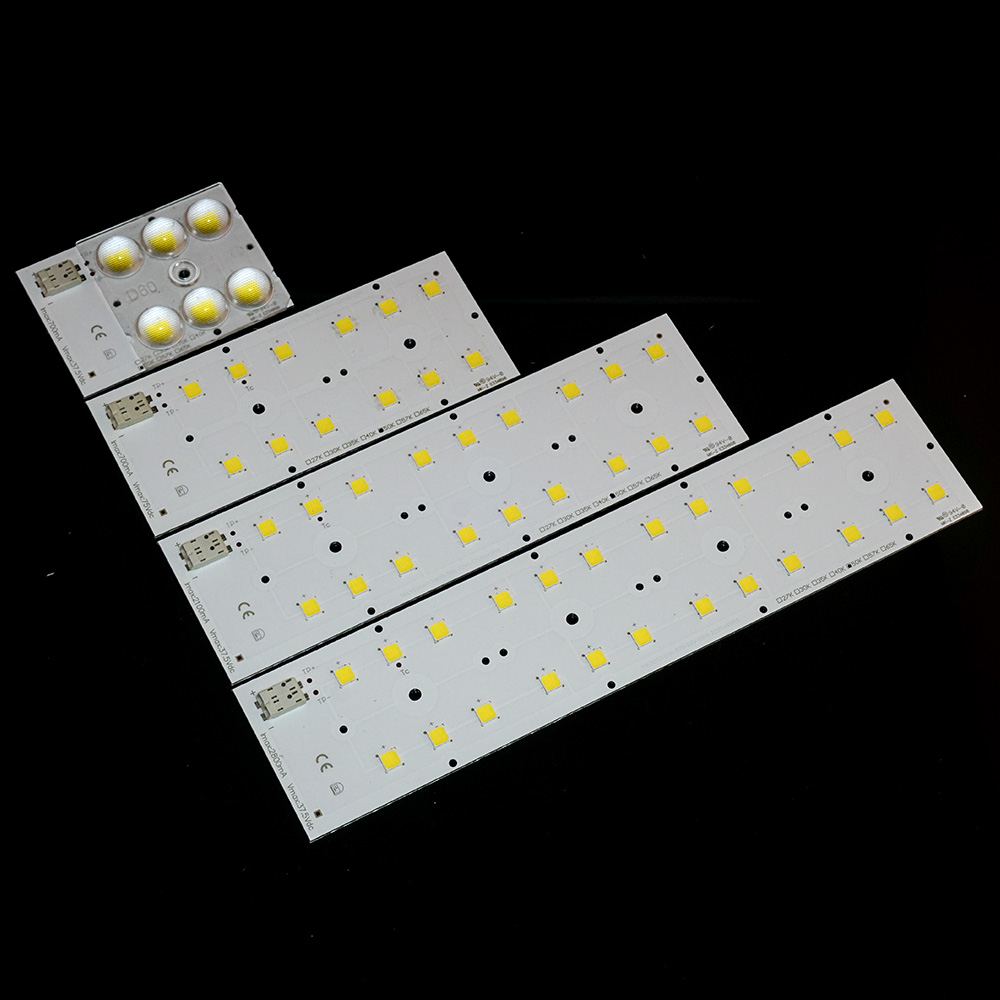

Data of LED Light Full Spectrum:
Part No. | CCT | CRI | LED of QTY | INPUT | Typ. Power | Typ. Flux | Typ. Efficacy |
MK5050-5050-6D | 2700/3000 | >80 | 6PCS 12PCS | 700mA/36VDC 700mA/75VDC | 25W 50W | 3000 | 120 |
MK5050-5050-12D | 7000 | 140 | |||||
MK5050-5050-18D | 4000/5000 5700/6500 | >80 | 18PCS 24PCS | 2100mA/36VDC 2800mA/36VDC | 70W 100W | 9450 | 135 |
MK5050-5050-24D | 16000 | 160 | |||||
Units | K | - | Pcs | Adjustable | W | Lm | Lm/w |
